Connect to IBM DB2

Please follow the steps below to create a DB2 connection:

1. Click on Data Connections in the left menu bar.

2. Enter the Data Connections page.

There are 2 options on this page:

1. "Create New Data Connection" at the top, click the corresponding connection type to add a new data connection.

2. "Available Data Connections" at the bottom, where you can select data connections that have been previously created.

3. Click on Create New Data Connection at the top right of the page, and then click the corresponding connection type to add a new data connection.

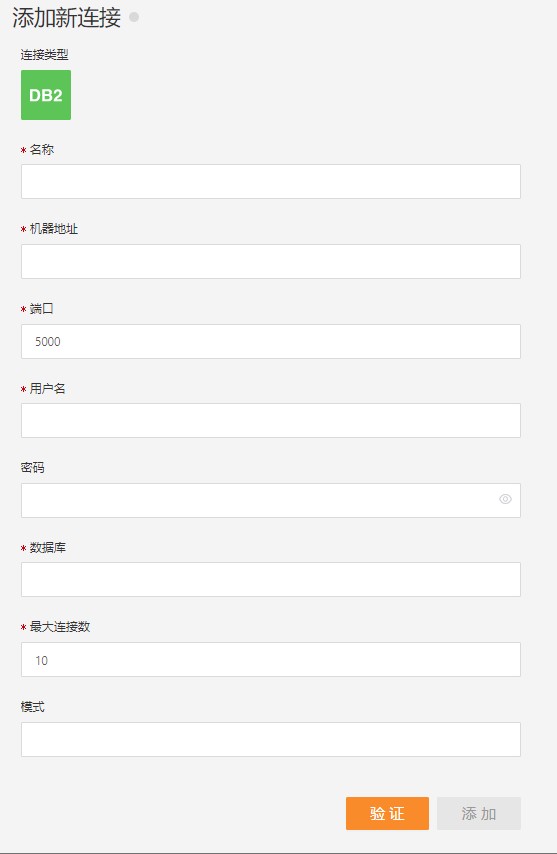

4. We select "DB2" within the "Database" group, and then proceed to the page to set the connection parameters.

5. After filling in the parameters, click the "Validate" button to obtain the validation results (to check the connectivity between Hengshi Sense and the data connection being set up; the connection cannot be added unless the validation is successful).

6. Once validation is successful, click the "Add" button to add the configured DB2 connection.
