Parameters

Parameters are a feature added in HENGSHI SENSE 3.2.

Parameters are designed for parameterized control of the application. With parameters, we can achieve:

• Parameterized creation of data sets
• Parameterized control of permissions
• Parameterized output of dashboards/charts
• Participation of parameter controllers in dashboard layout

Previously, application version functions that required changes in multiple places can now be implemented by modifying in just one place.

Create New Parameter

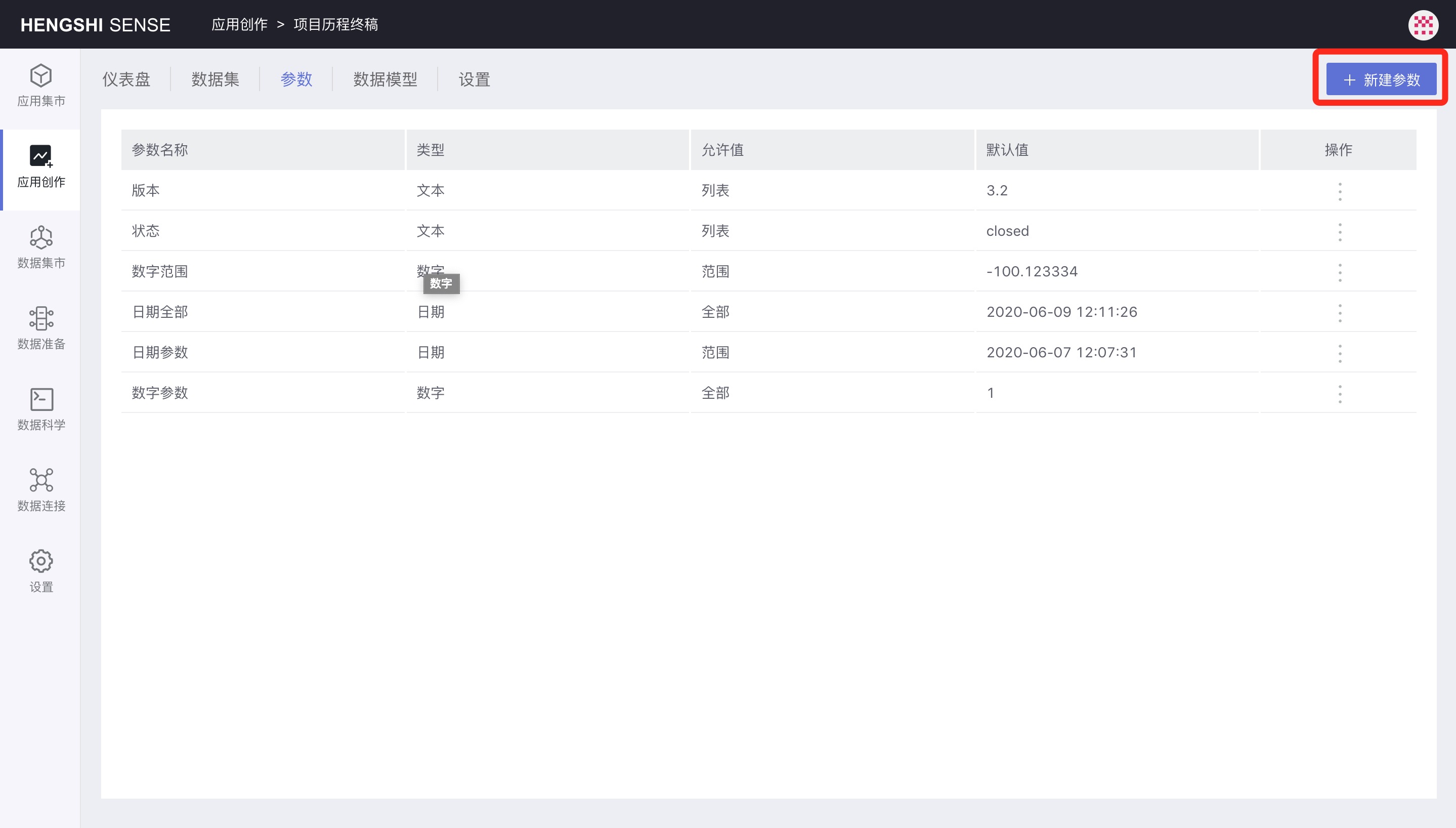

Click Create New Parameter on the Parameters page to pop up the Create New Parameter dialog.

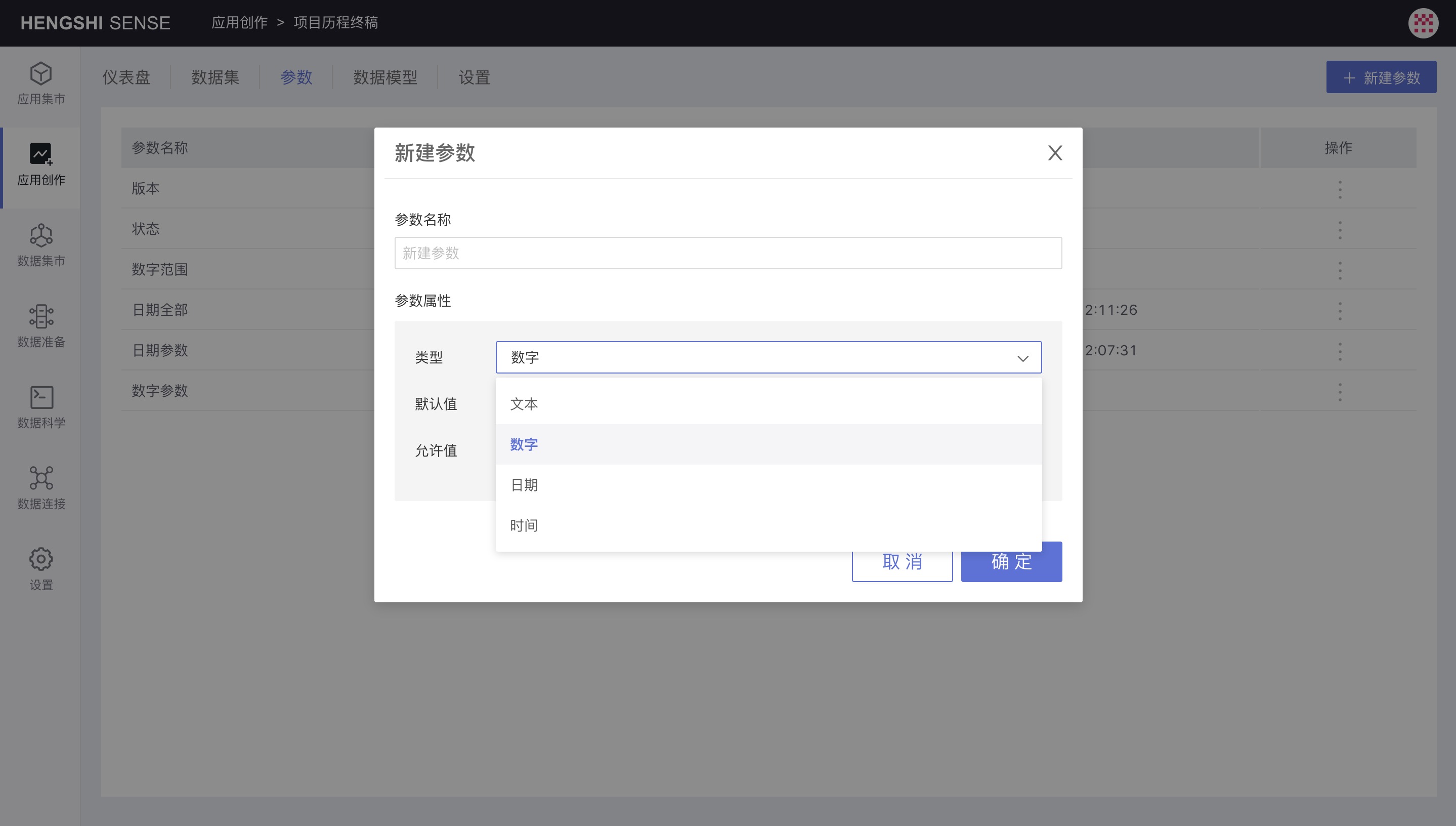

Parameter Type

The parameter type can be: text, number, date, time.

Parameter Default Value

Each parameter must specify a default value, which is used wherever the parameter controller is not used to change the parameter.

Parameter Values

All

Selecting All means that the parameter can be any value of the selected type. For example, if the parameter type is number, then the parameter value can be any number.

List

Selecting List requires providing a selectable list for the parameter. The list can be entered manually or obtained from a field.

As shown, click Add from Field, select a dataset from the current application, list the fields in the dataset that match the parameter type, click to select a field, and the field values will fill the list.

Clicking Clear All will empty the list.

Range

When the parameter type is number or date, there is a range option for parameter value.

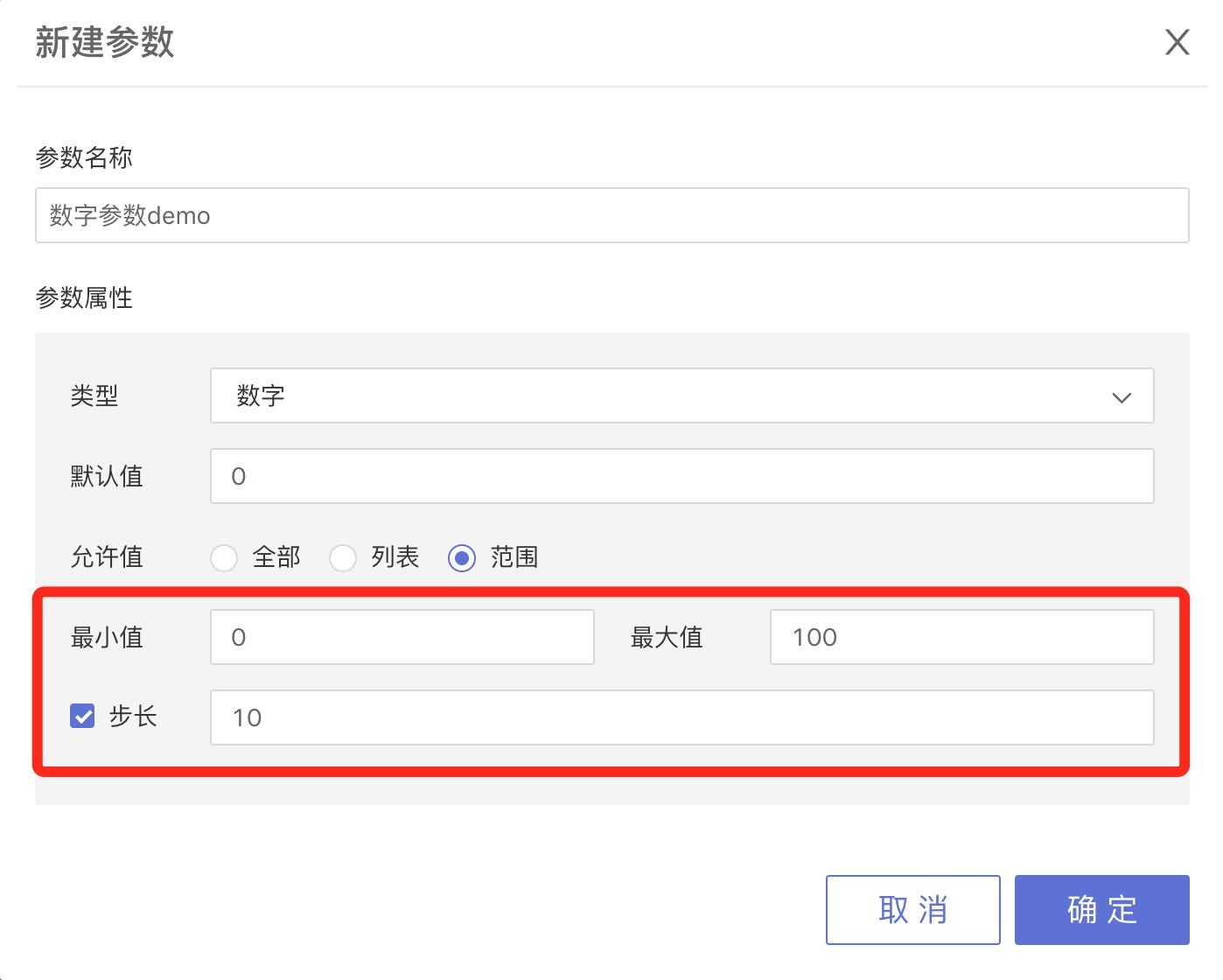

When selecting a number type, you need to set the maximum, minimum, and step, with a default step of 1.

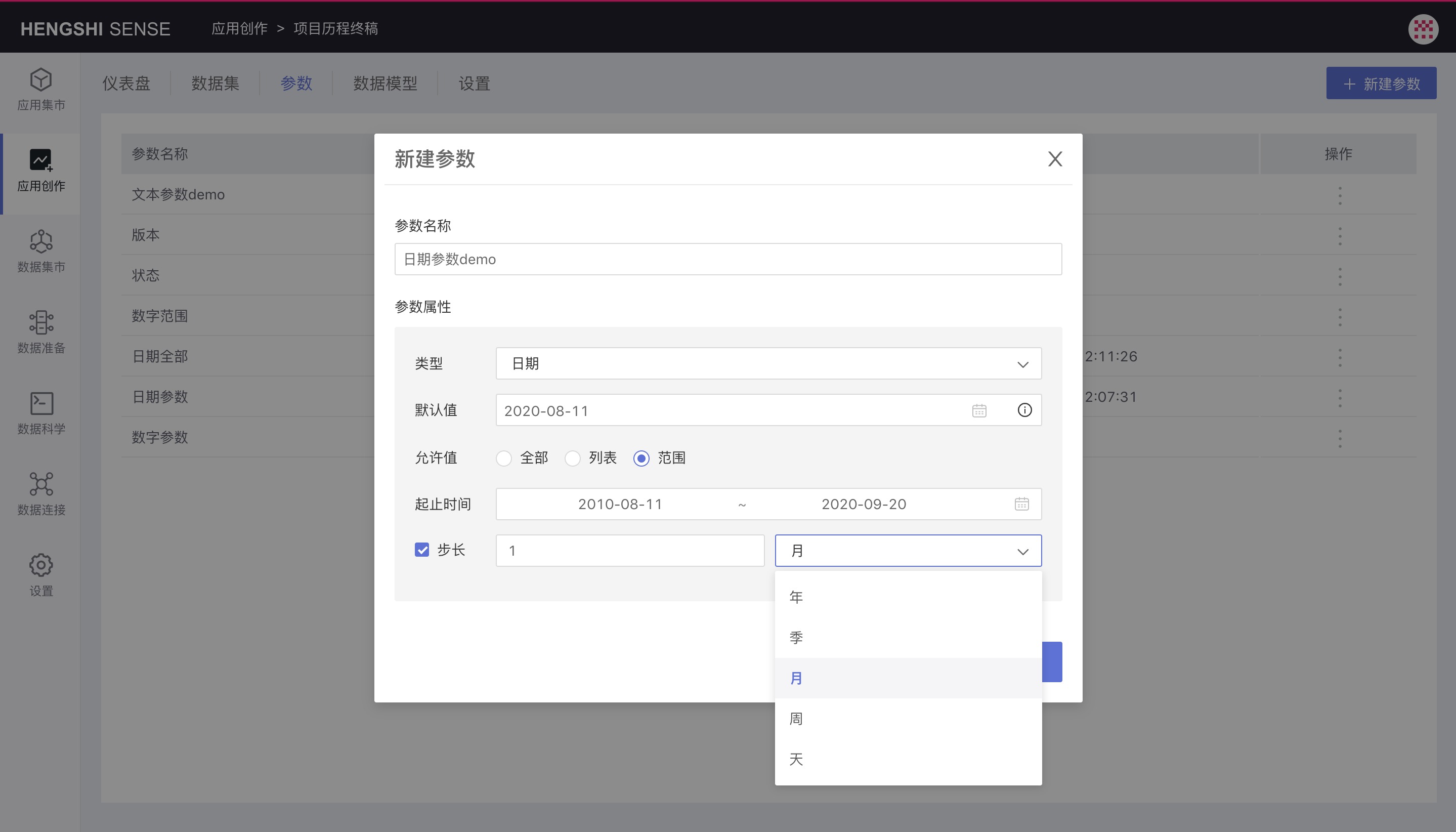

When choosing a date type, you need to set the start and end time, step, and step cycle: year, quarter, month, week, day.

Display Value

Display Value is the value shown to the user. In the parameter controller, the selected value is the display value, but the backend actually uses the value.

Edit Parameter

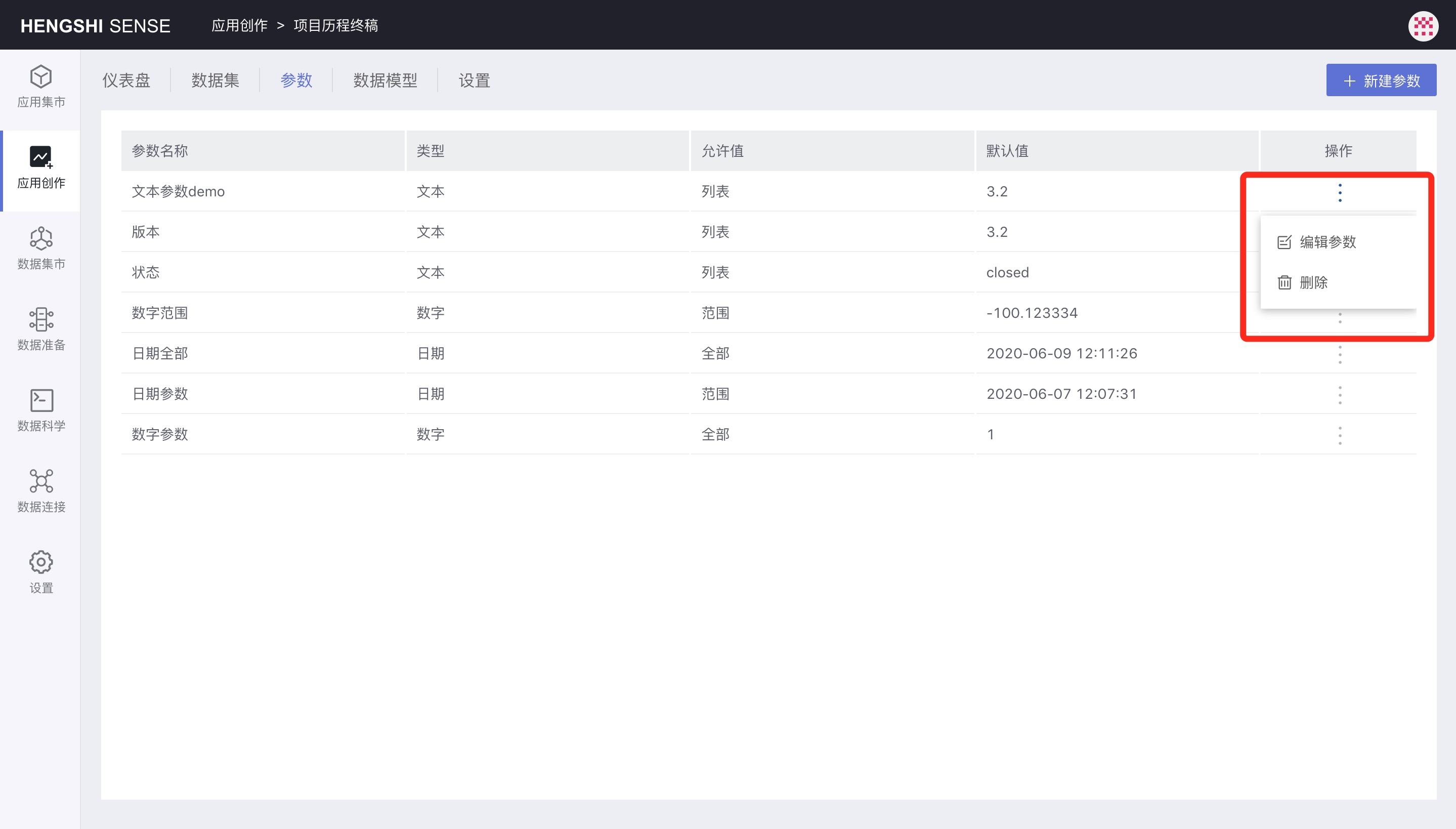

Click on the three-dot menu in the parameter list, select Edit Parameter from the pop-up menu to open the edit parameter dialog and make changes to the parameter.

When editing a parameter name, any places where the parameter is used in expressions will give an error: parameter xxx does not exist.

When editing the parameter type, the places using the parameter will also give an error.

Changes to the parameter's selectable values without modifying the parameter name and type will not cause an error.

Delete Parameter

Click on the three-dot menu in the parameter list, and choose Delete from the pop-up menu to delete the parameter.

Parameter Controller

The parameter controller is used to control the current value of the parameter. It can be part of the dashboard layout, like a filter, and can control the display of charts by adjusting parameter values.

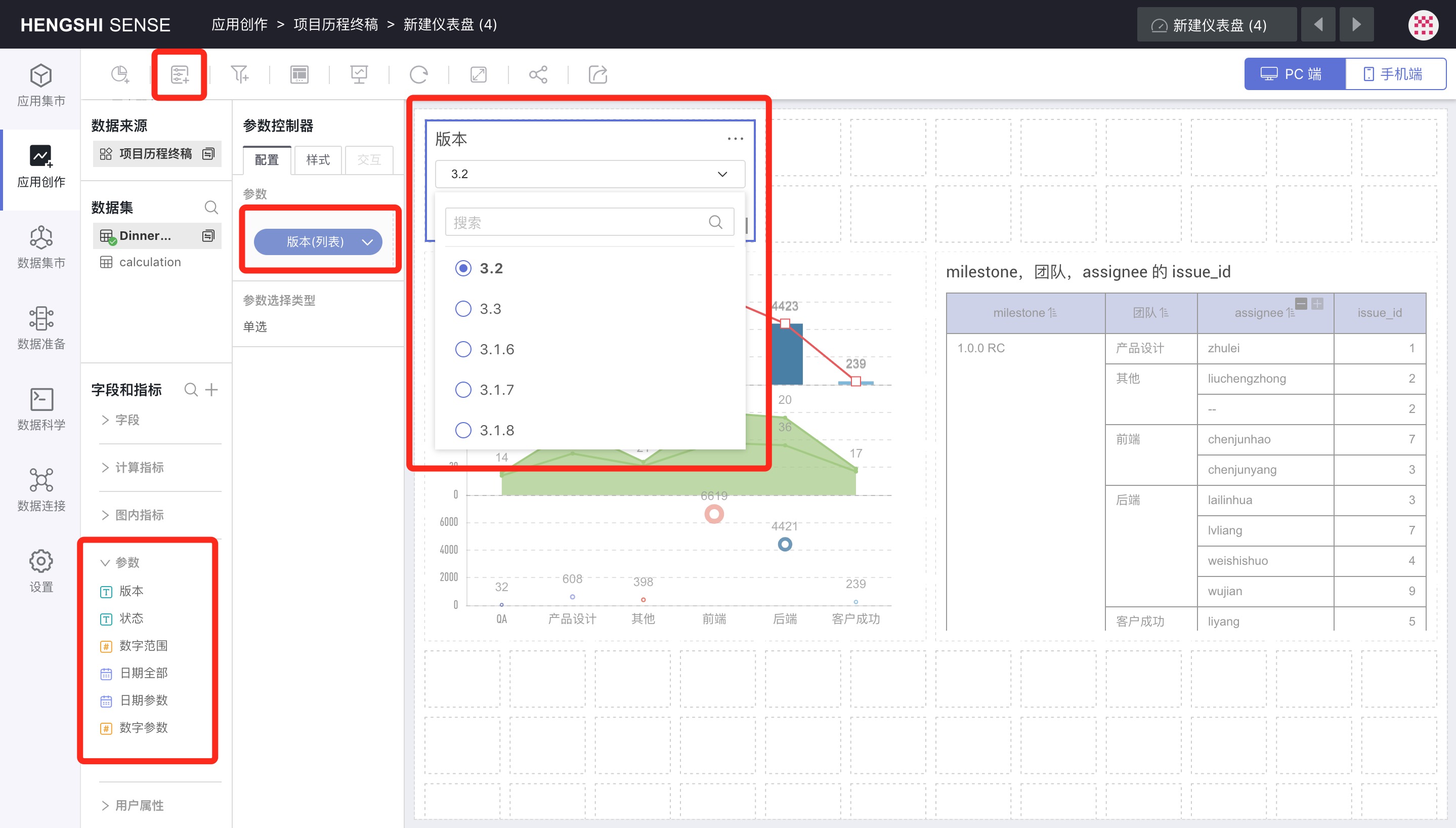

Click the Add Parameter Controller icon in the dashboard to add a parameter controller to the dashboard.

Select a parameter from the Parameter list on the left and drag it into the parameter configuration area, and a filter in the form of a parameter will appear in the dashboard. Parameters can only be selected one at a time because a parameter can only have one current value.

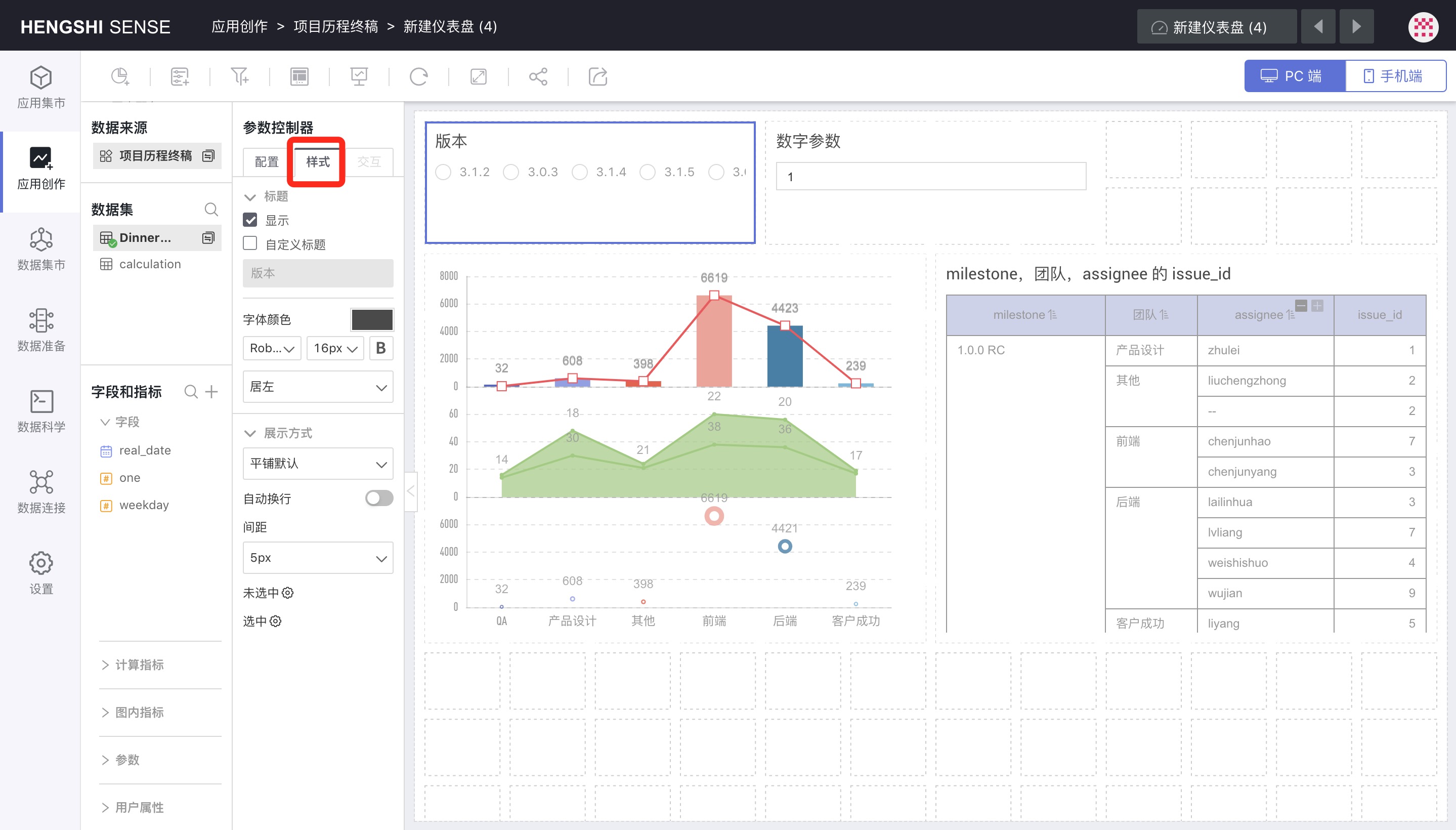

Switch to the Style tab to set various styles for the parameter controller. The settings differ for different types of parameters: text, number, date, time. For detailed settings, see the style settings of the layout filter.

Parameter Use Cases

In Creating SQL Query Data Set Statements

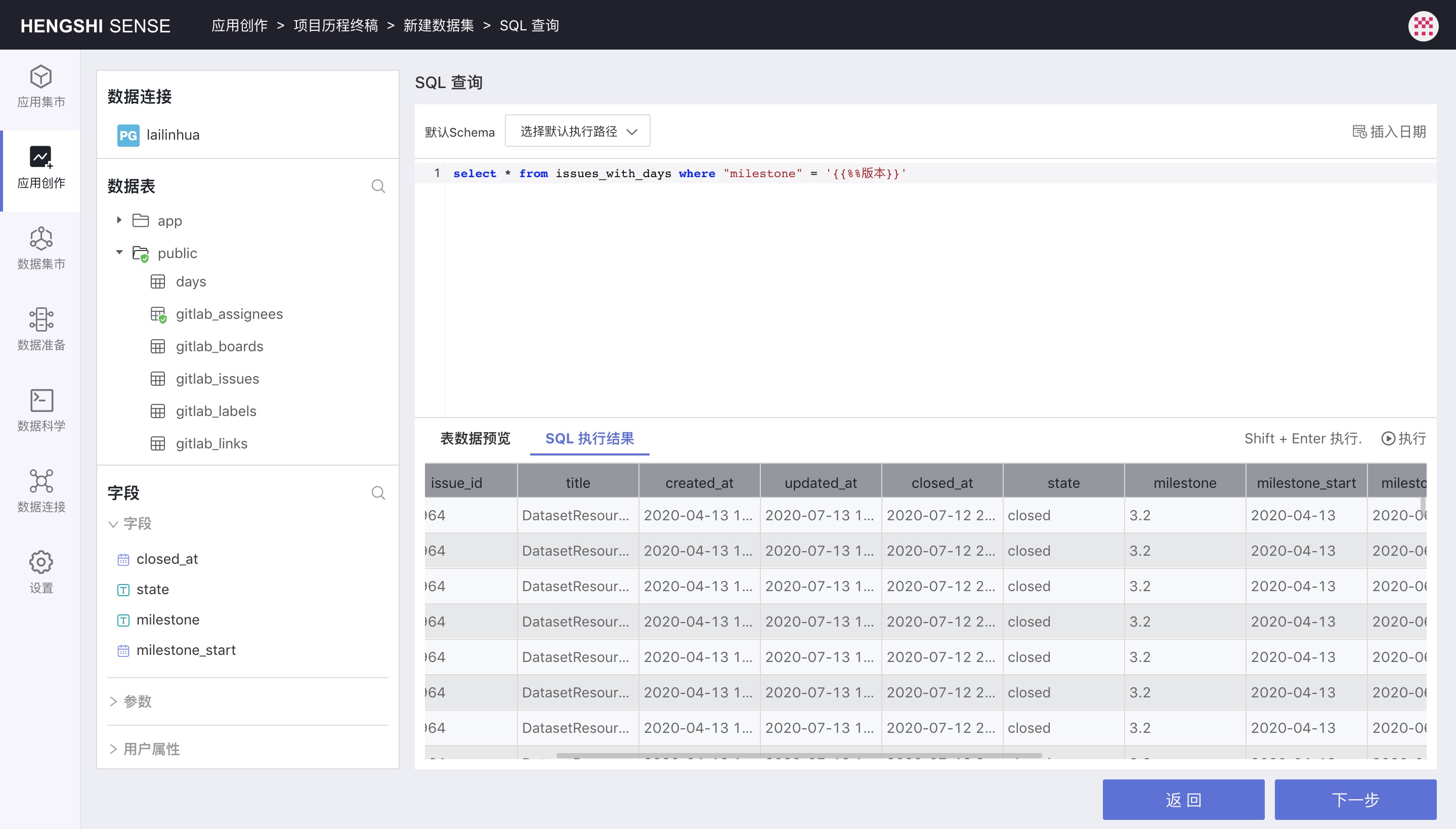

When using parameters in SQL queries or table names, uniformly use {{%%parameter_name}}, the backend only does text replacement, regardless of the type.

In Creating Data Set Filter Conditions

Simple Filter

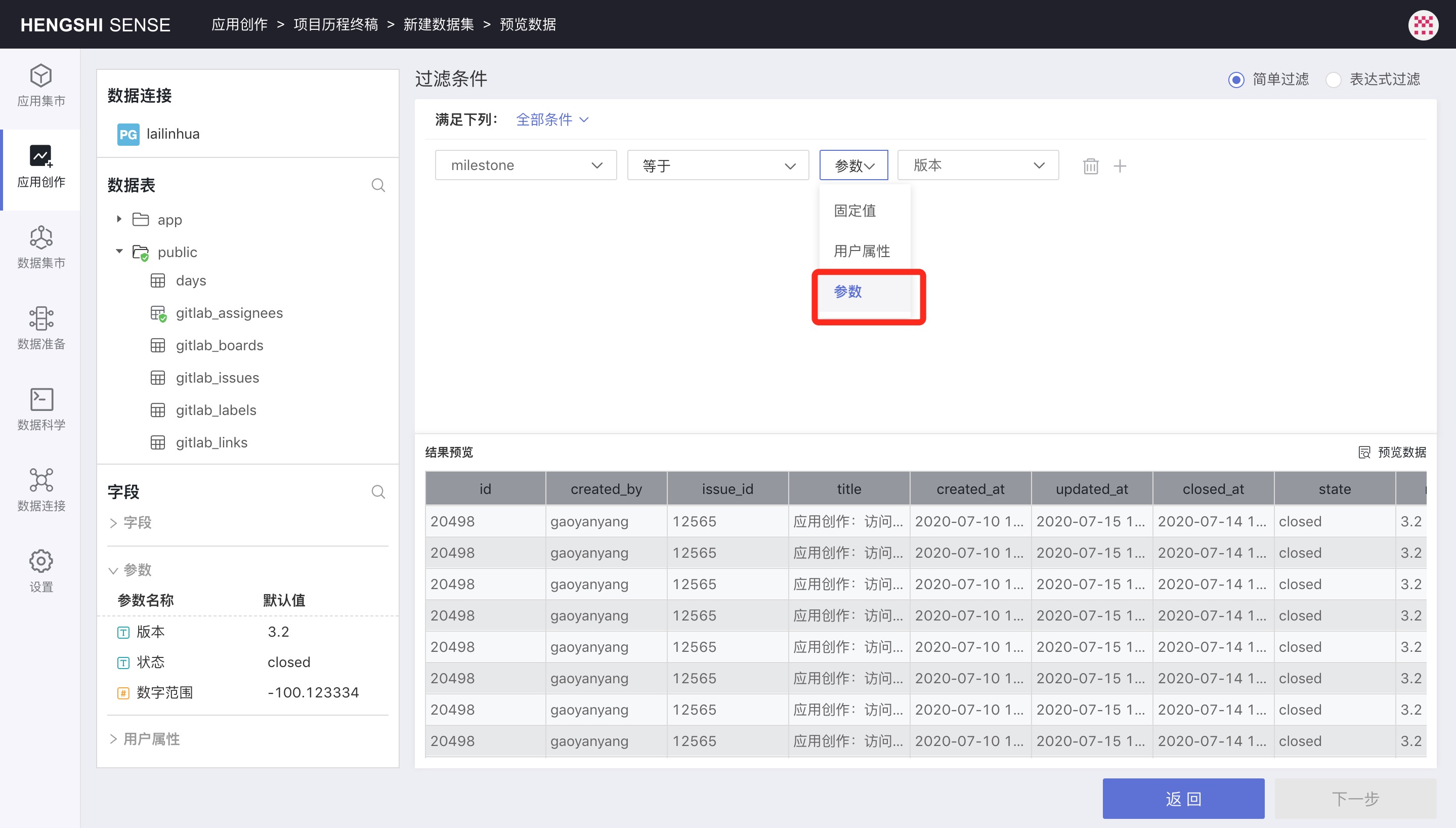

When creating a data set, for Simple Filter, the way to use parameters is as follows:

Expression Filter

In Expression Filter, you can use either the parameter {{%parameter_name}} or the parameter value {{%%parameter_name}}, in addition, fields need to be enclosed in {}.

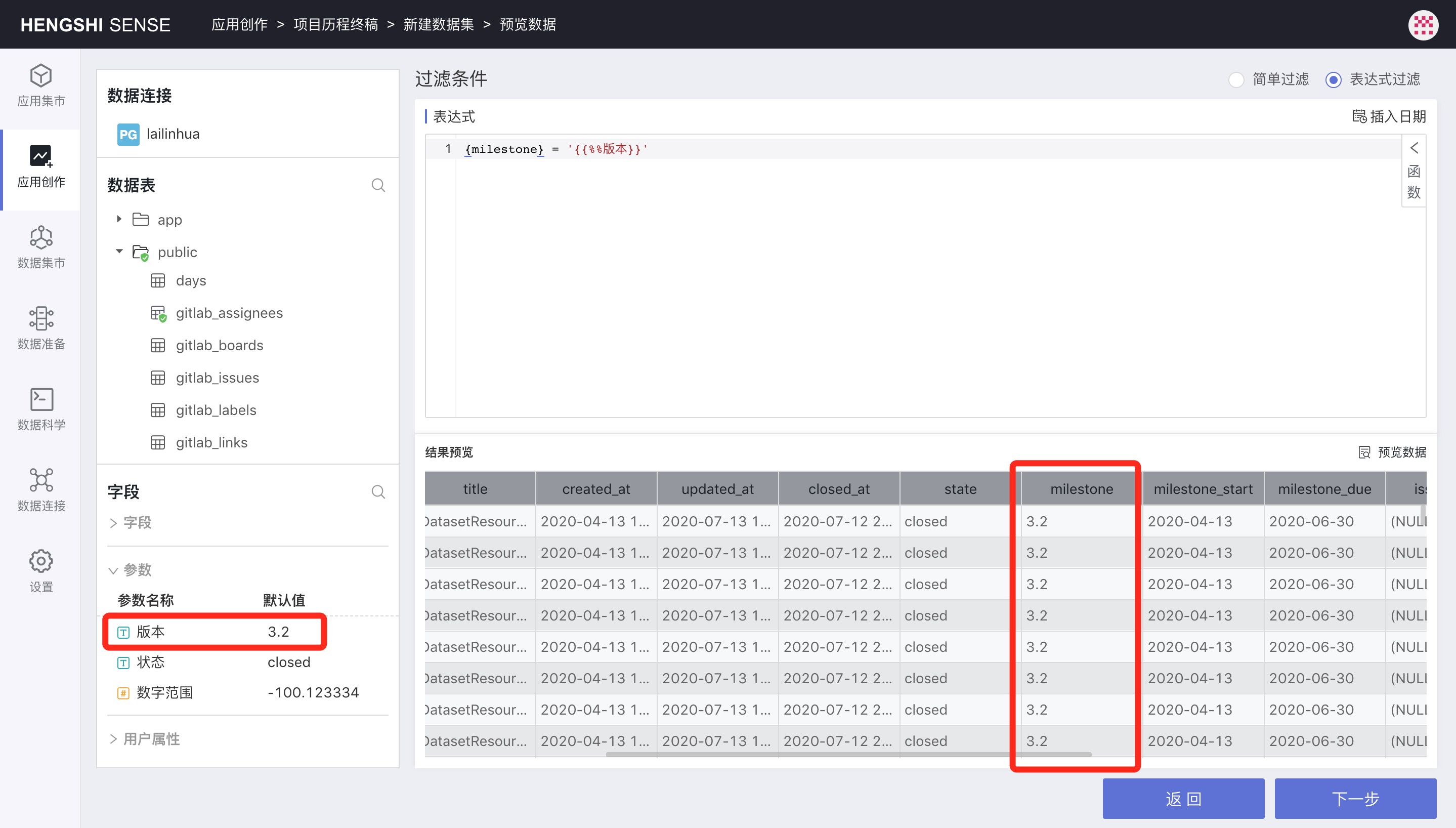

In the image below, the default value of the parameter "version" is 3.2. After filtering with the expression {milestone} = {{%version}}, the result will only show rows where milestone equals 3.2:

In the Expression of Adding Fields or Metrics

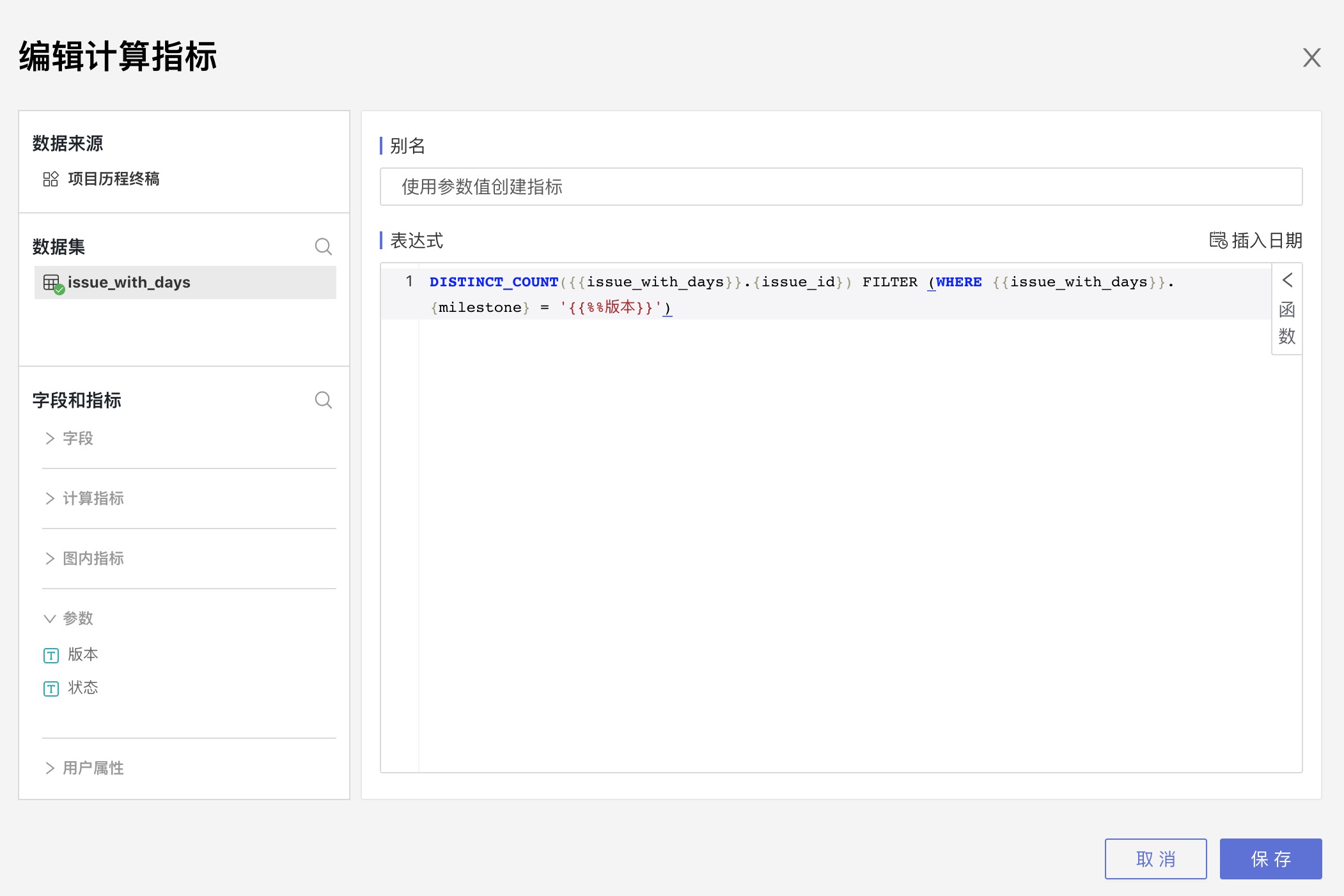

In the expression for adding fields and metrics, you can use either the parameter {{%parameter_name}} or the parameter value {{%%parameter_name}}.

Using Parameters

Using Parameter: {{%parameter_name}}

Using Parameter Values

Using Parameter Value: {{%%parameter_name}}

In Chart Filters

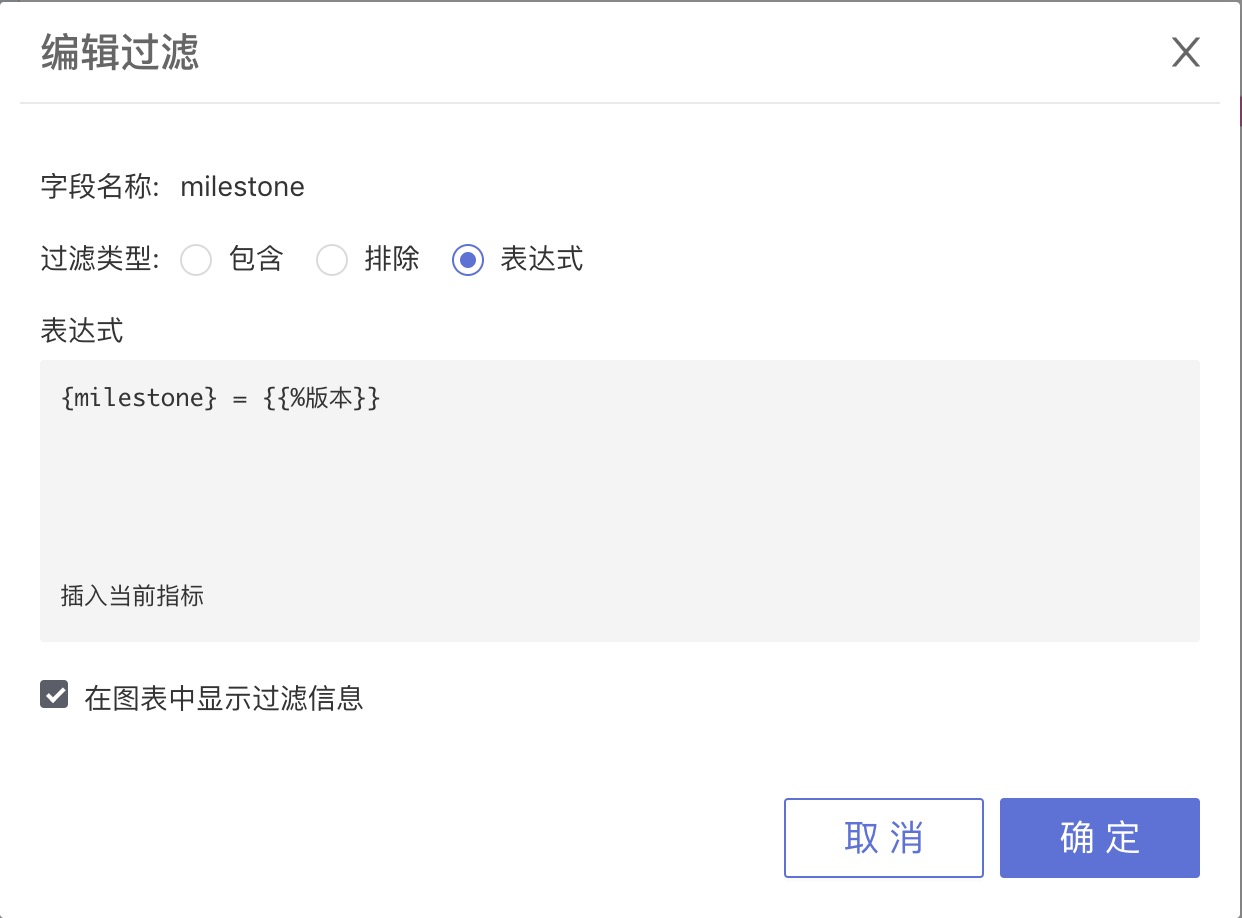

The way of using parameters in chart filters is the same as adding fields/metrics:
