The Application Marketplace also includes other operations

Data analysis role users can view applications published by other users in the Application Marketplace, manage their own published applications; and can browse charts within the application, export applications, share applications, etc.

Cover Operations

Operations on the application cover in the Application Marketplace include:

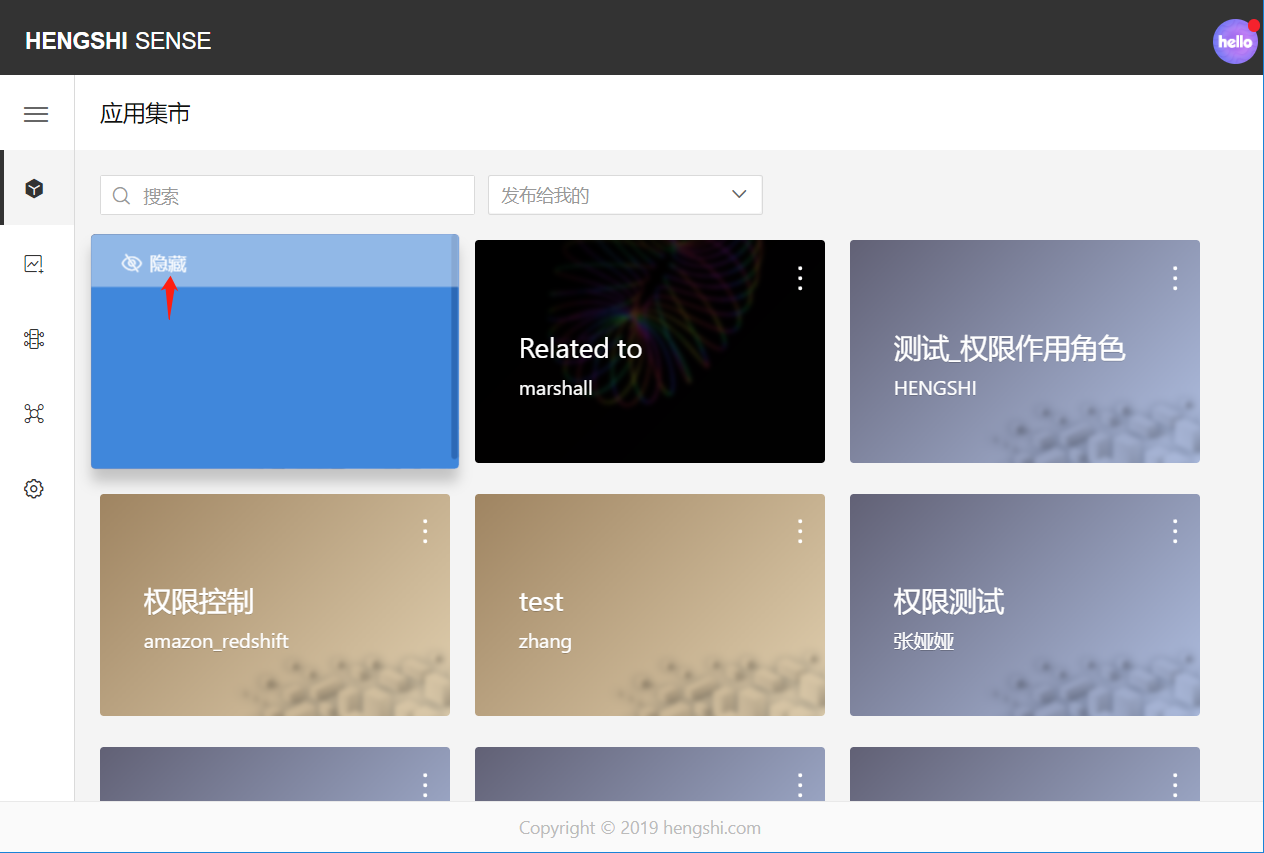

• Hide: Hide applications published publicly by other users

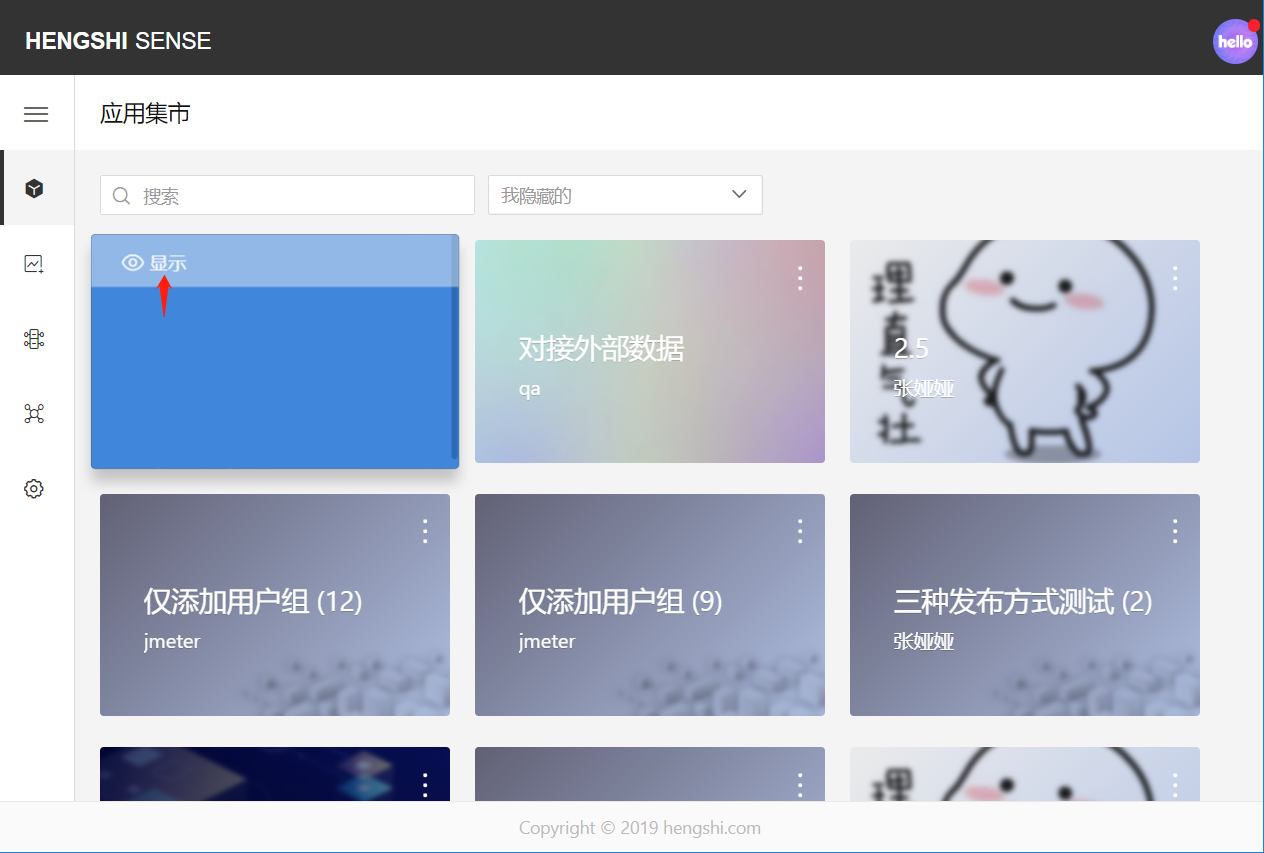

• Show: Re-display hidden applications in the my hidden group

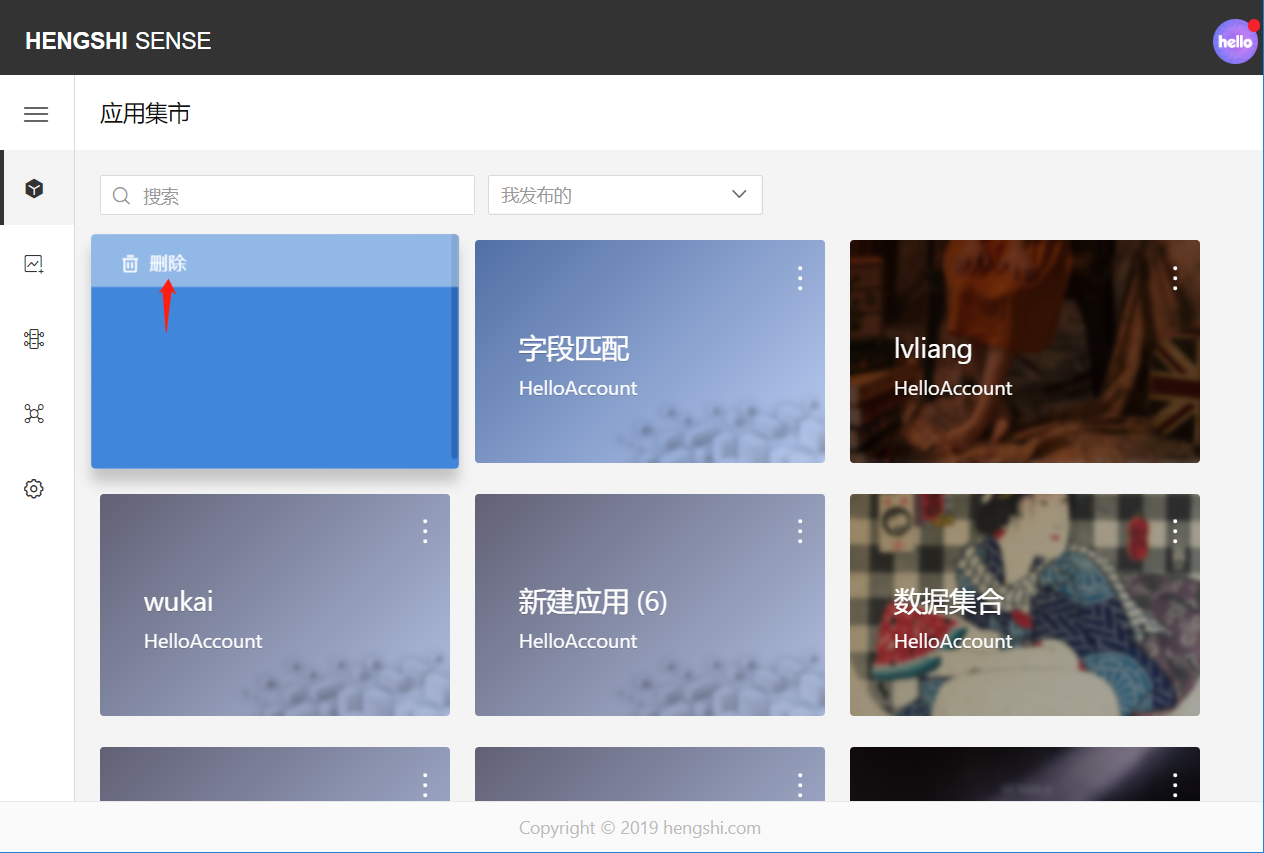

• Delete: Delete your own published applications



In-App Operations

Applications published with the author's data for public use

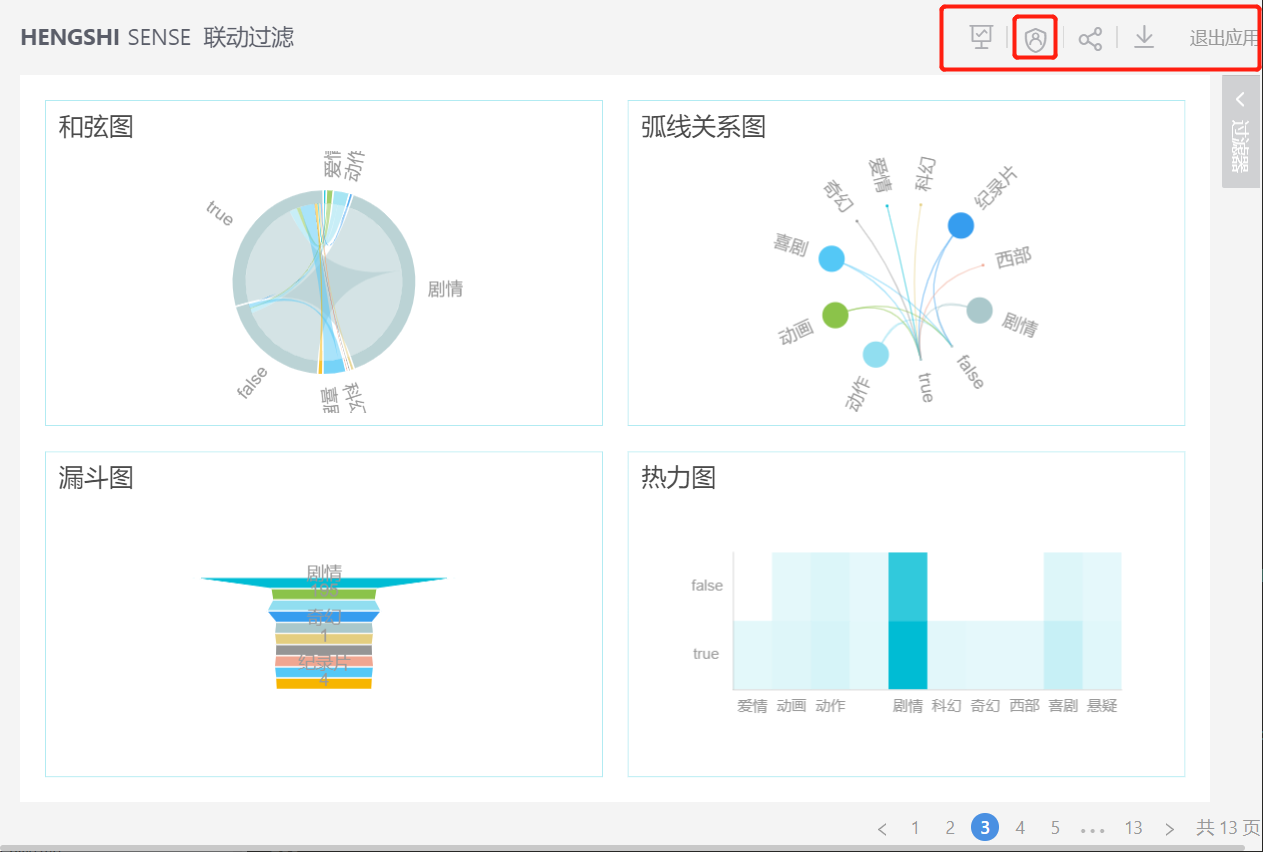

In-app operations include:

• Preview
• Theme
• Share
• Export Application
• Exit Application
• Filters

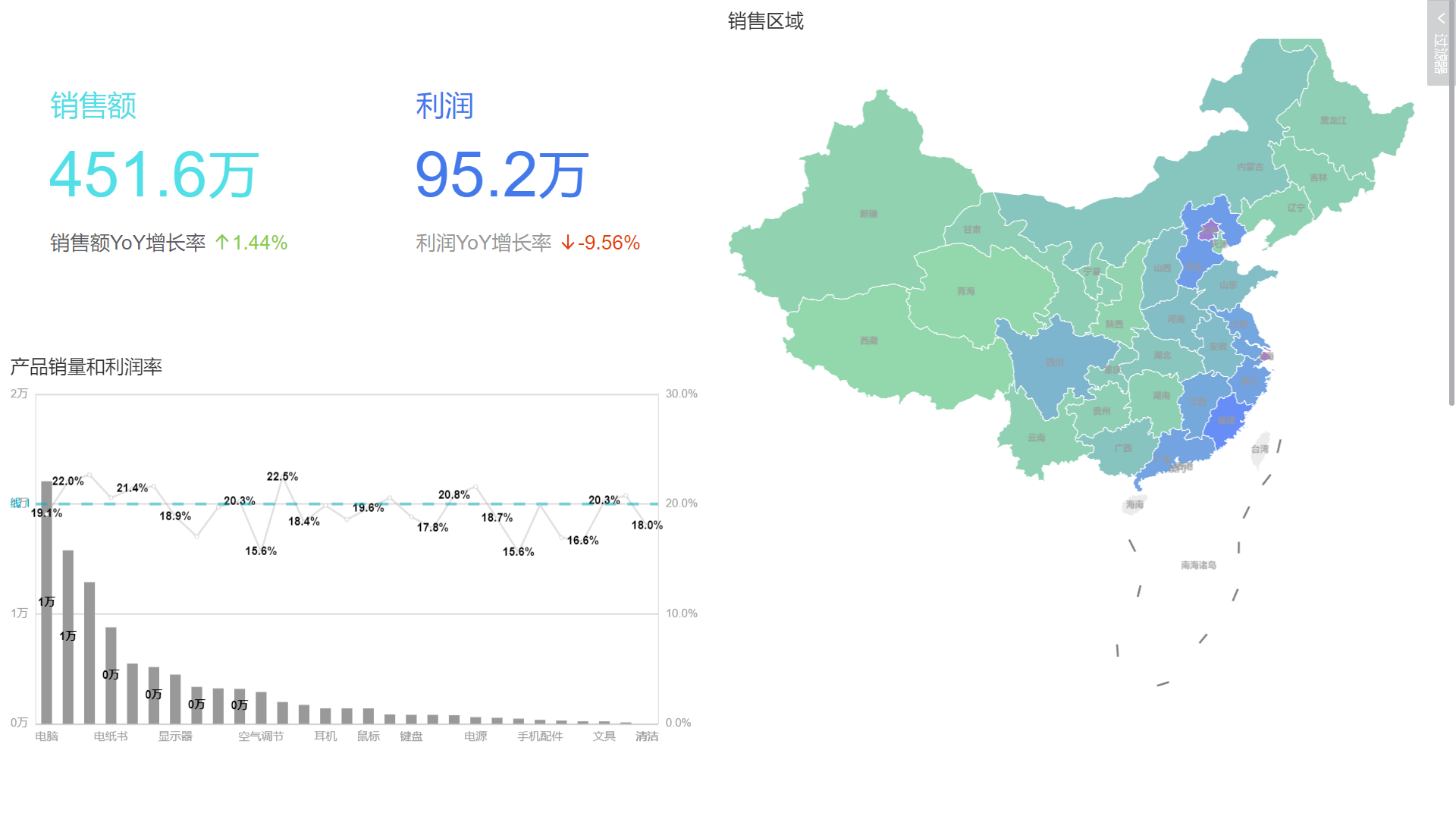

Preview

1. Click the Preview icon to enter full-screen mode, which supports left and right key switches for dashboards;

2. Press the ESC key to exit full-screen mode.

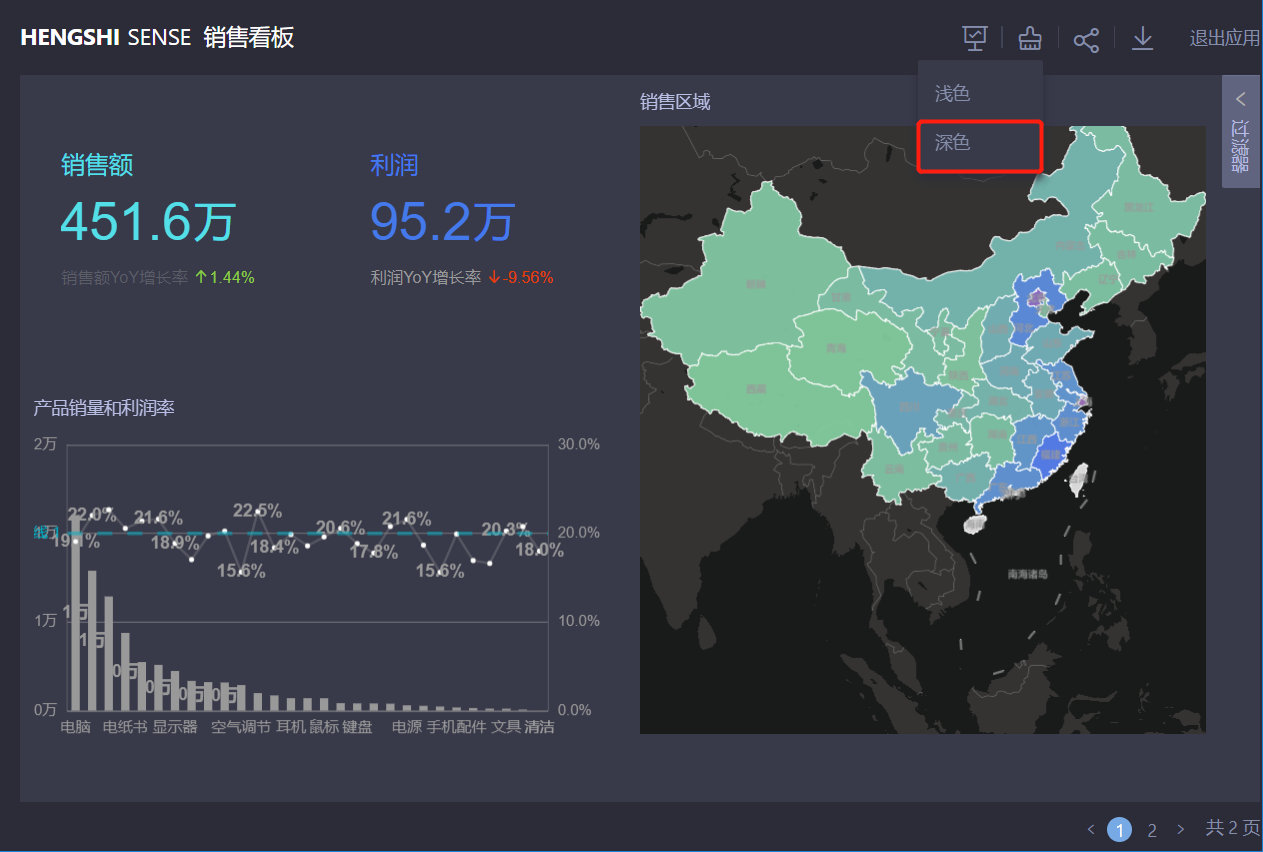

Theme

If the dashboard is an old version (prior to 2.6) and was published without setting a theme, you can still switch themes in the upper right corner of the dashboard: light and dark themes.

In this case, users can switch the application theme color as needed. The system provides two themes: dark and light.

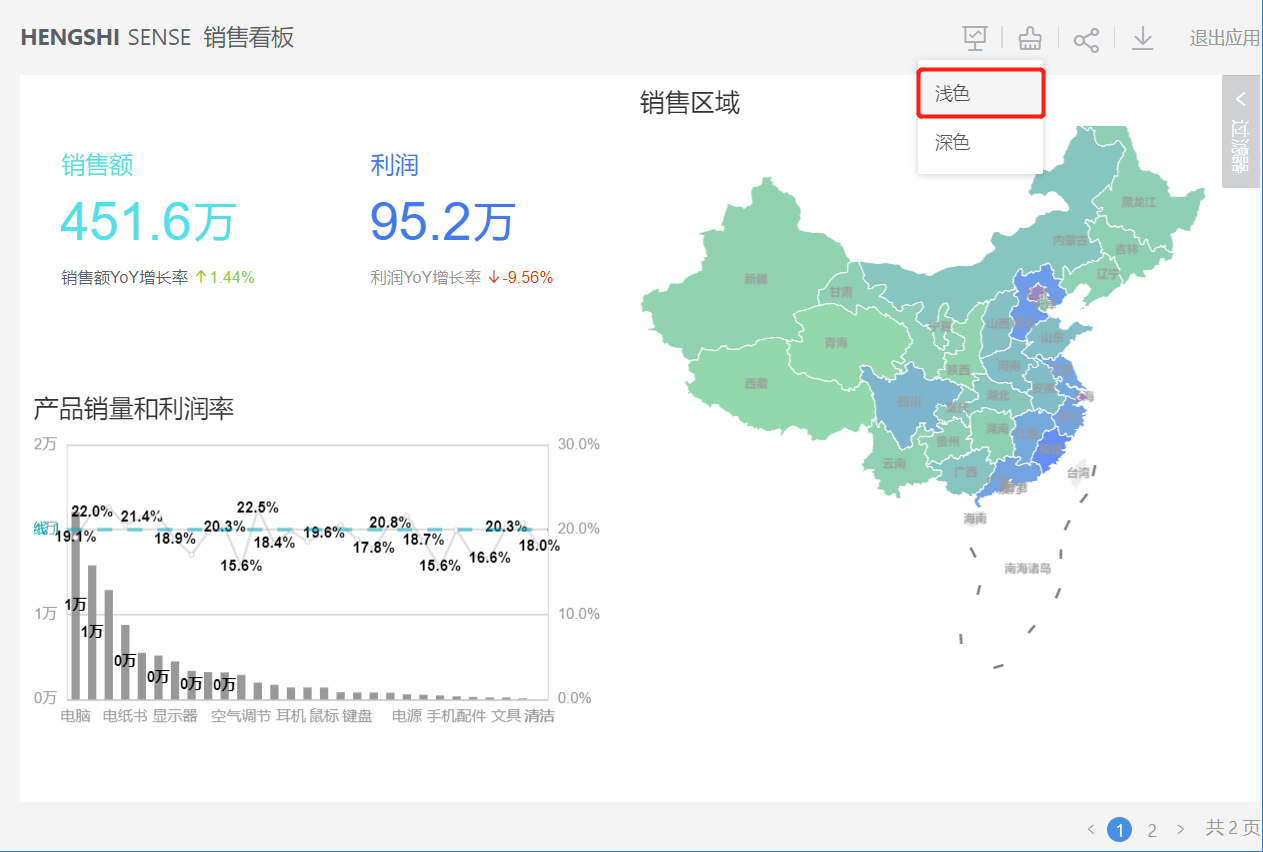

• Light


  Under the light theme, chart configurations (chart coloring, label colors, map background, table fonts color, and background color) are completely consistent with the settings in the application creation.

• Dark



  Chart configurations adapt automatically under the dark theme:

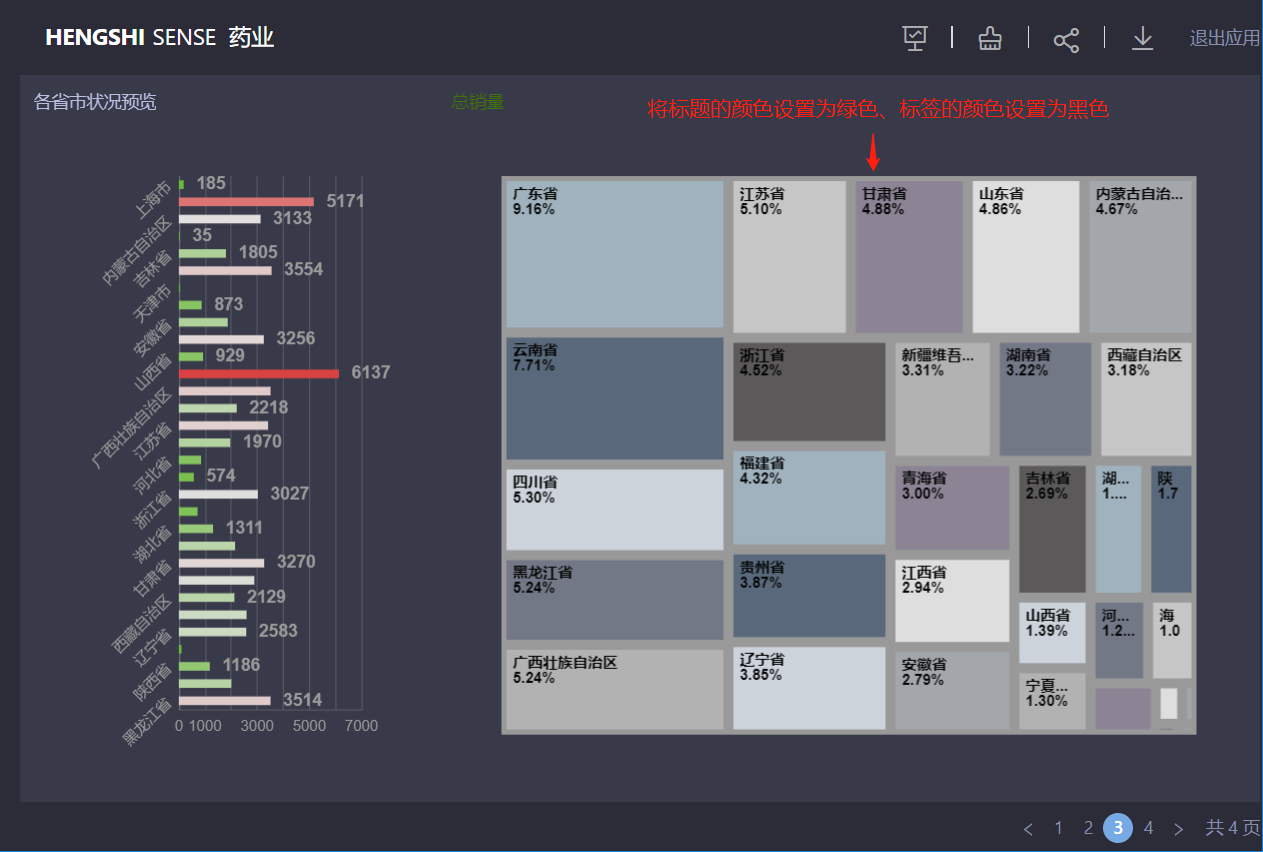

• Under the dark theme, chart coloring, chart title colors, and label colors adapt to the dark theme:

  • Titles not modified in application creation become white, and labels adapt to light gray in the dark theme (left-side horizontal bar chart);

  • Titles and labels with modified default colors retain the set color in the dark theme (right-side bar and treemap chart);

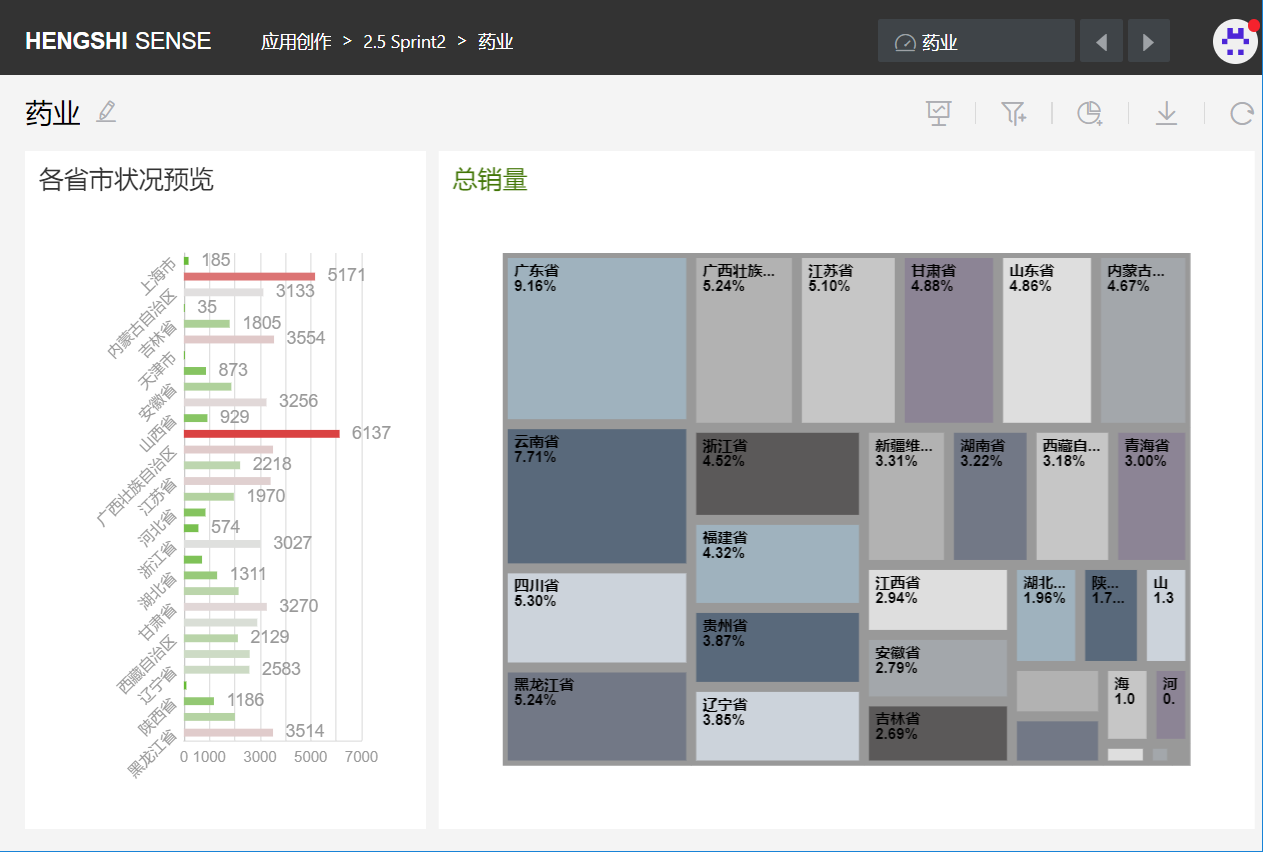

  Charts in the application creation area:



  Charts under the dark theme in the Application Marketplace:

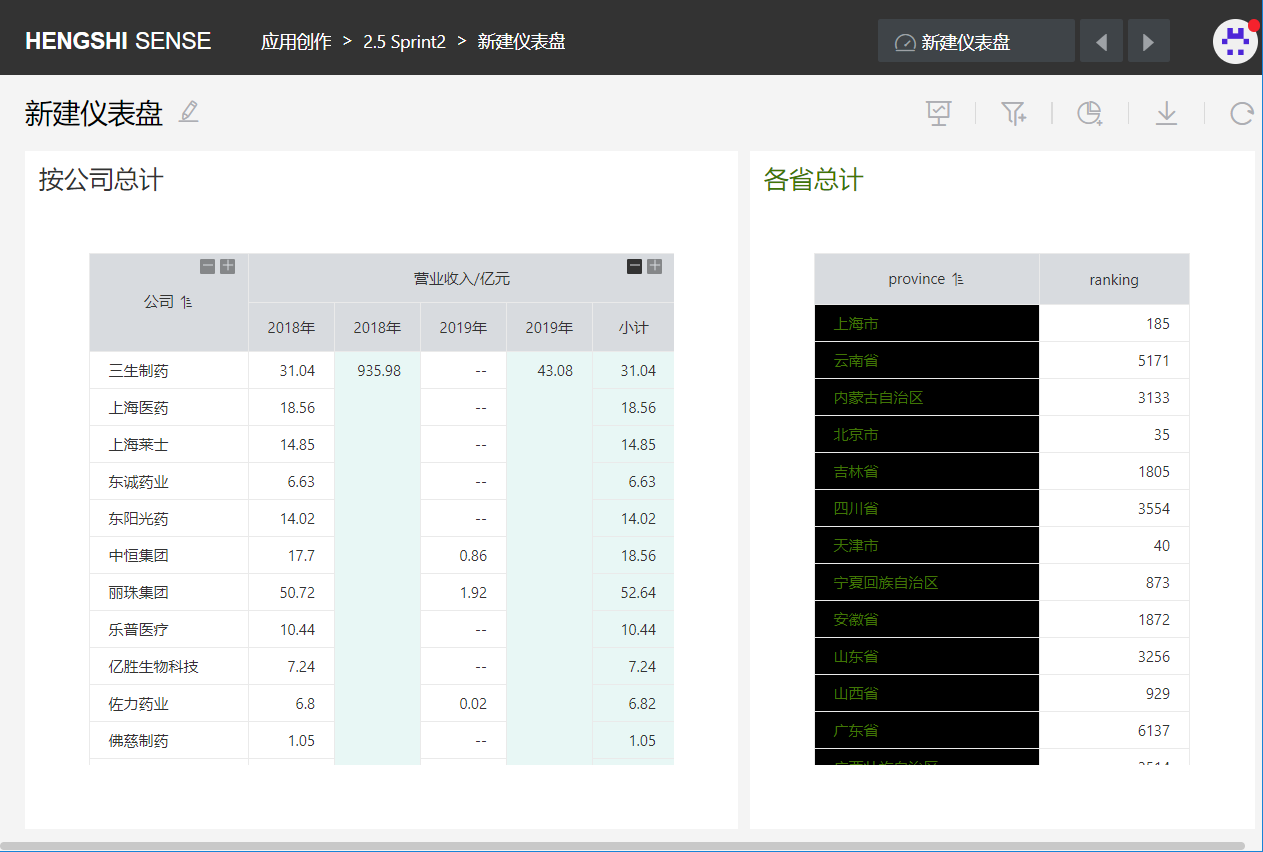

• Tables:

  • Default font and background colors of the table in application creation (left-side table) adapt to the dark theme: fonts are white, subtotals are green, and the header is gray;

  • Tables with colors set for font and background in application creation (right-side table) retain the custom colors and do not adapt.

  Charts in the application creation area:



  Charts under the dark theme in the Application Marketplace:

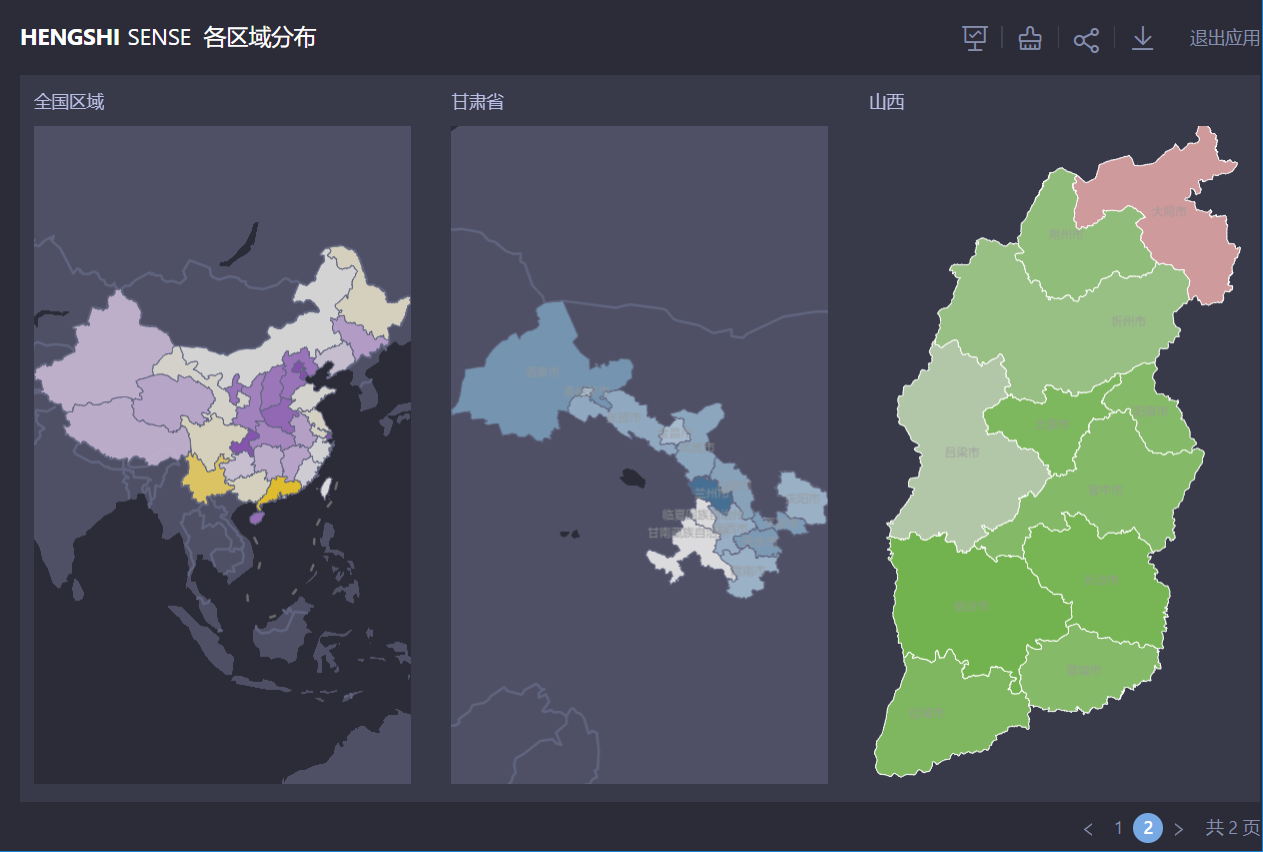

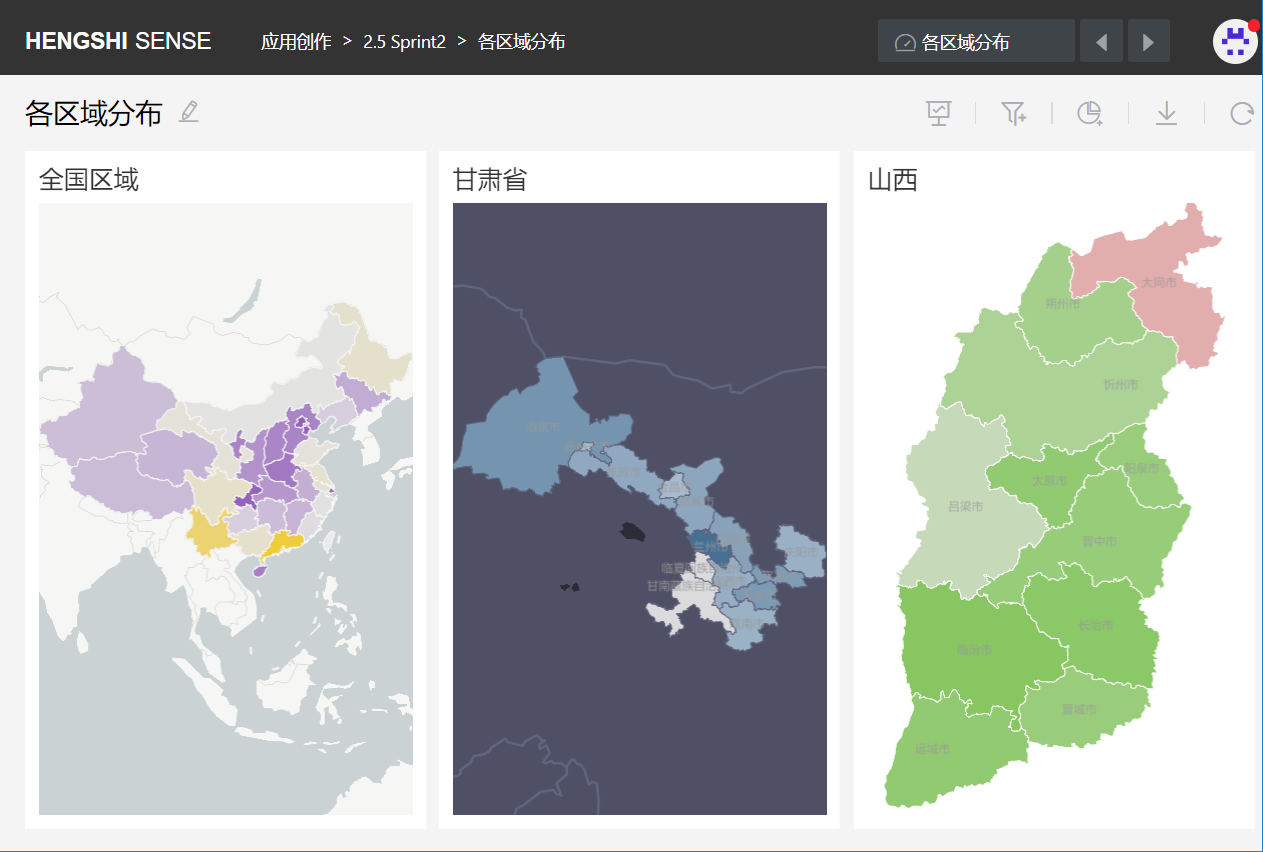

• Maps: The background of different themes chosen for the map in application creation under the dark theme in the Application Marketplace:

  • If the light theme is chosen for the map in the creation area, the background is dark in the dark theme in the Application Marketplace (the first chart from the left)

  • If the dark theme is chosen for the map in the creation area, the background is dark in the dark theme in the Application Marketplace (the middle chart)

  • If the no background theme is chosen for the map in the creation area, the background is transparent in the dark theme in the Application Marketplace (the right chart)

  Charts in the application creation area:



  Charts under the dark theme in the Application Marketplace:

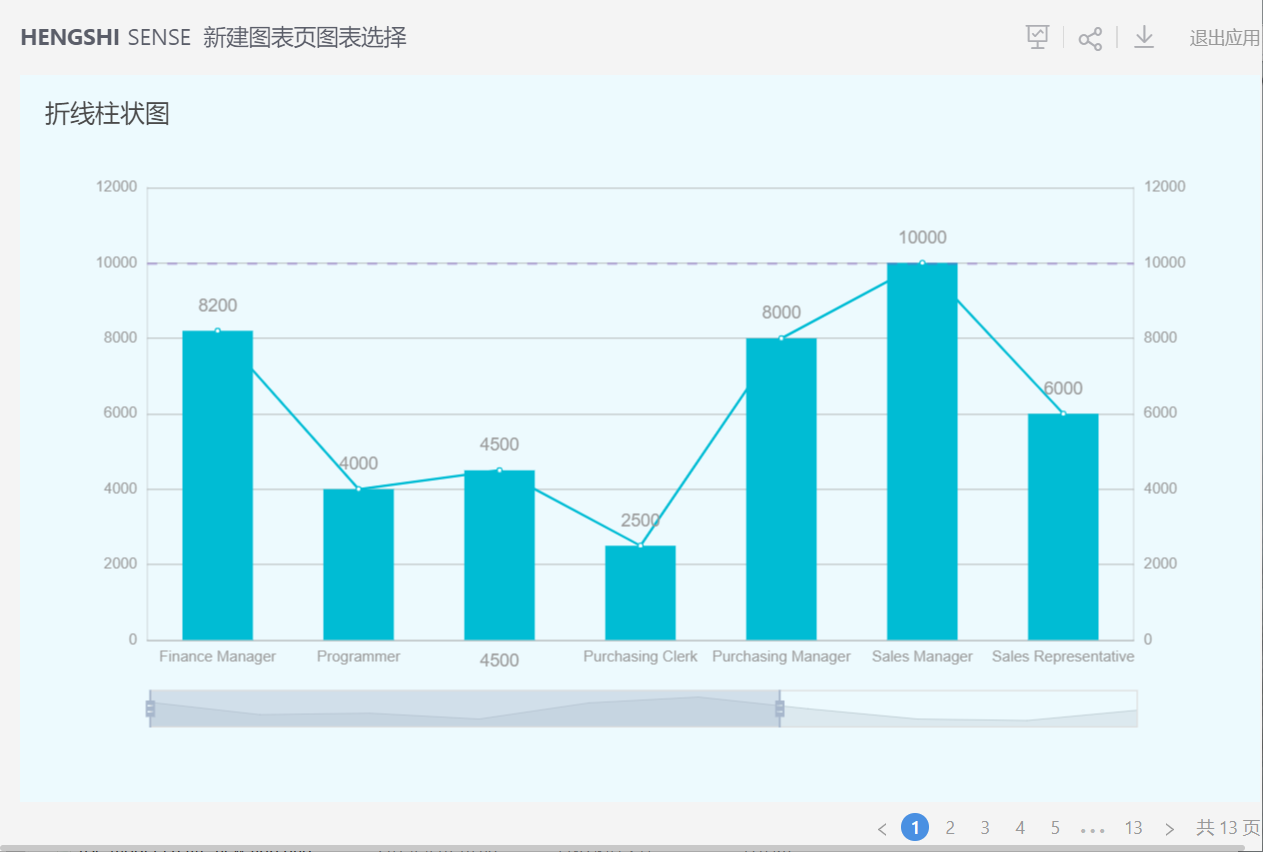

If the dashboard is an old version (prior to 2.6) but a theme was set for publishing, the system will no longer provide a theme switching function.

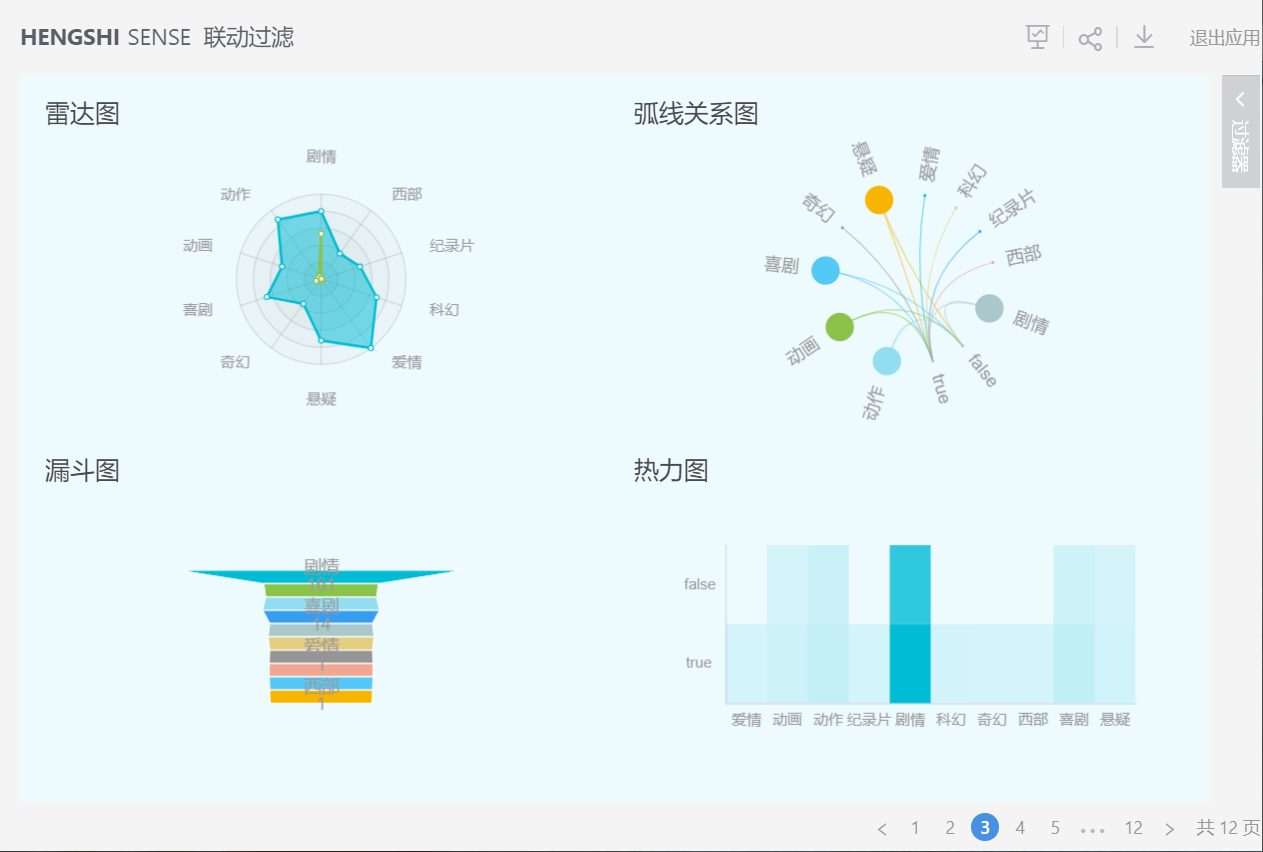

If the dashboard is newly created, the charts in the published application will display according to the set theme, and the system will no longer provide a theme switching function.

Share

Click the Share icon to choose to share the application or the current dashboard.

Sharing is introduced in detail in the Embed/Share section.

Export Application

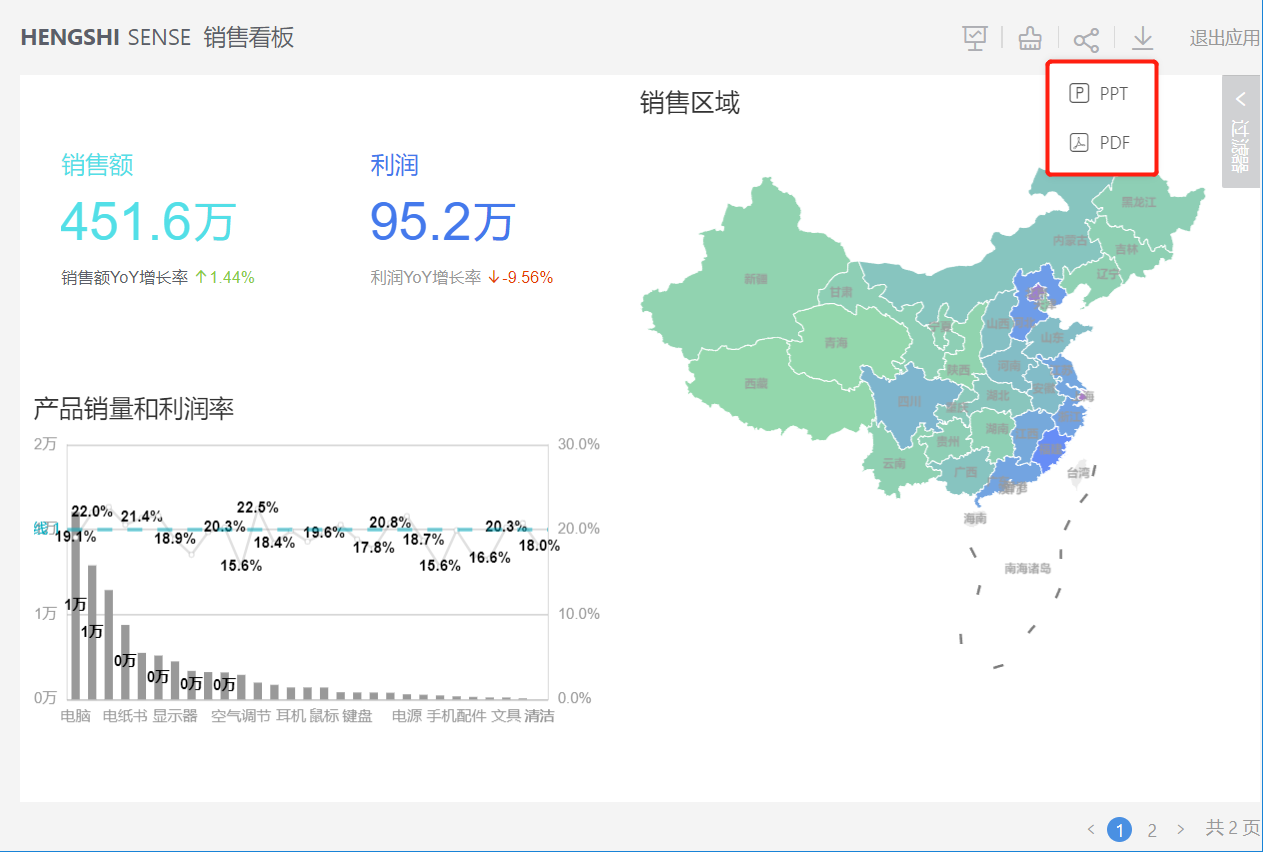

Application export is of two types:

• Export as PDF

• Export as PPT

Exporting the application to PDF has the same theme color as displayed in the Application Marketplace.

Exit Application

Click the Exit Application icon to return to the Application Marketplace homepage.

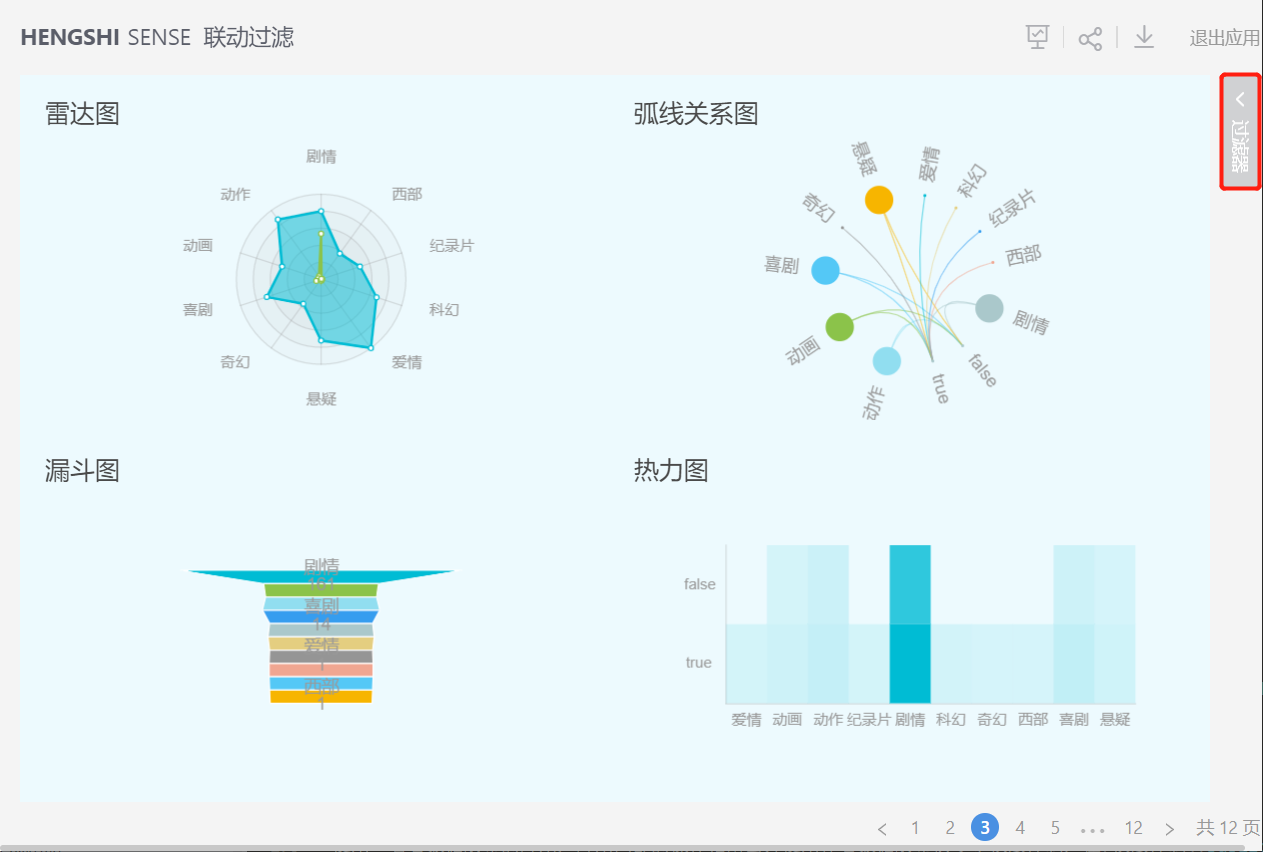

Filters

Filters in the dashboard in the Application Marketplace are collapsed by default:

You can expand the filters to control the display data of the charts on the dashboard by adjusting the filter range:

Applications published with the author's data for restricted use

Applications published with restricted use of the author's data have similar in-app operations to those publicly available, with the addition of permission control, which is explained in detail in the Permission Control section.

Applications published using viewer data

Applications published using viewer data have similar in-app operations to those publicly available, with the addition of permission control, which is explained in detail in the Permission Control section.

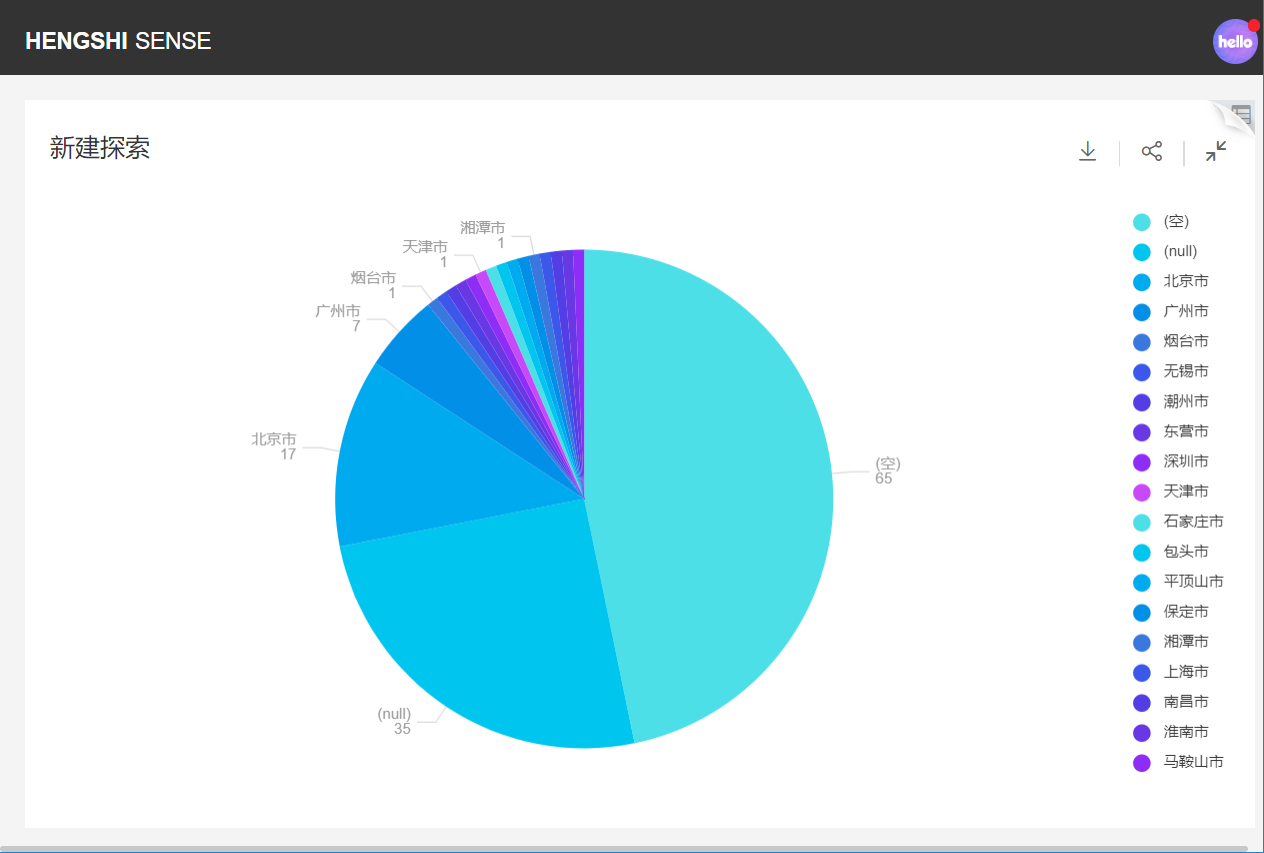

In-Chart Operations

In-chart operations include:

Export

Save the current page's chart as a PNG screenshot or PDF screenshot and download it to the local device.

Share

Sharing is introduced in detail in the Embed/Share section.

Back

Click the Back icon to return to the dashboard page.
